UHF Powered Wideband Antenna

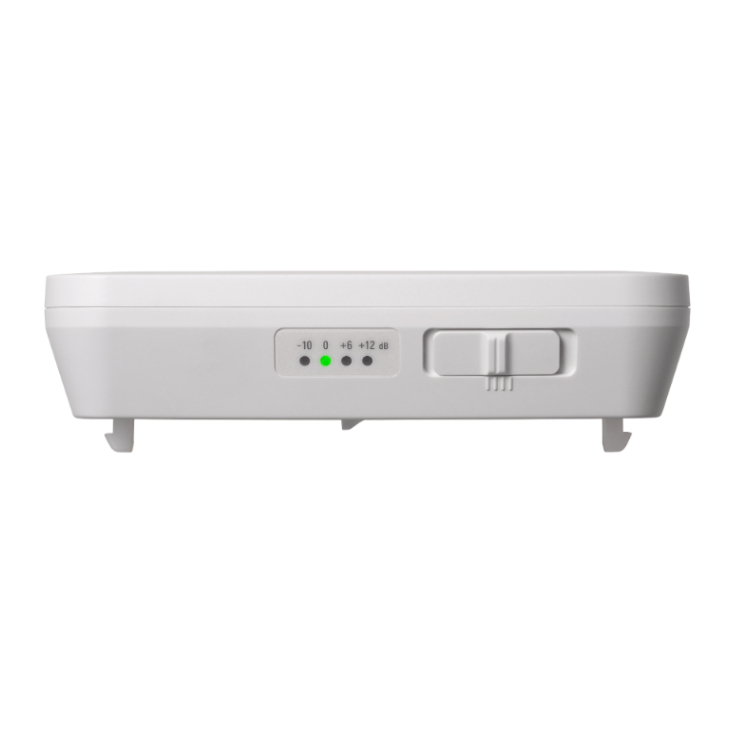

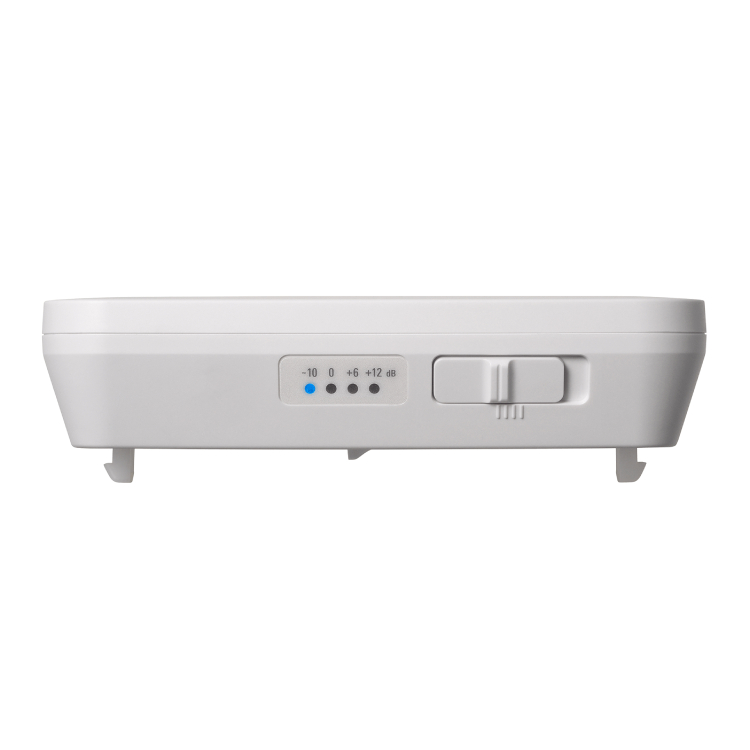

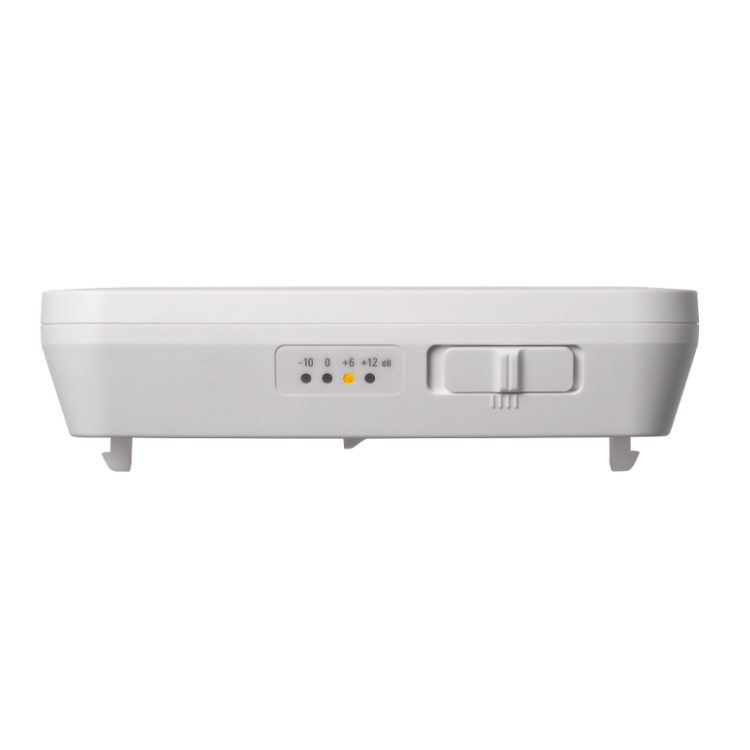

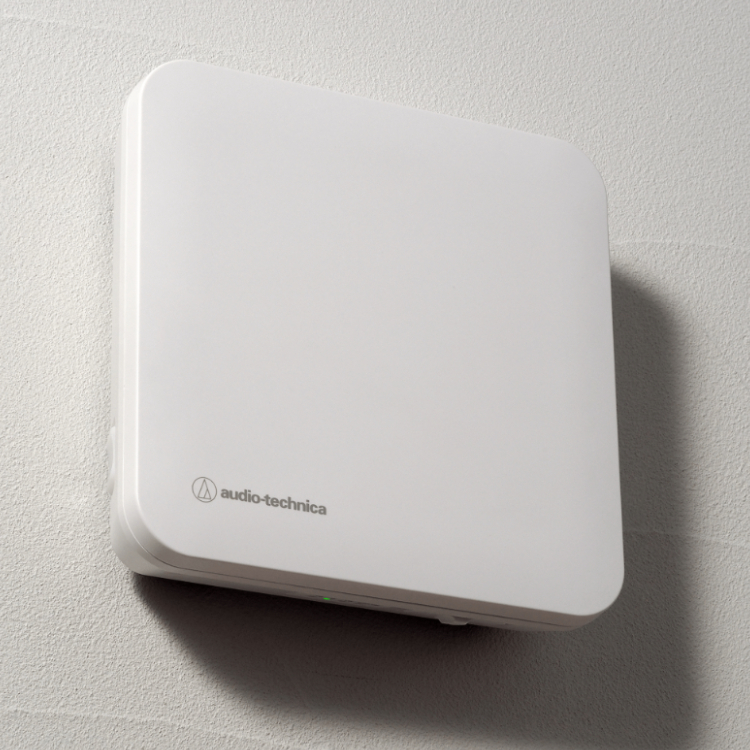

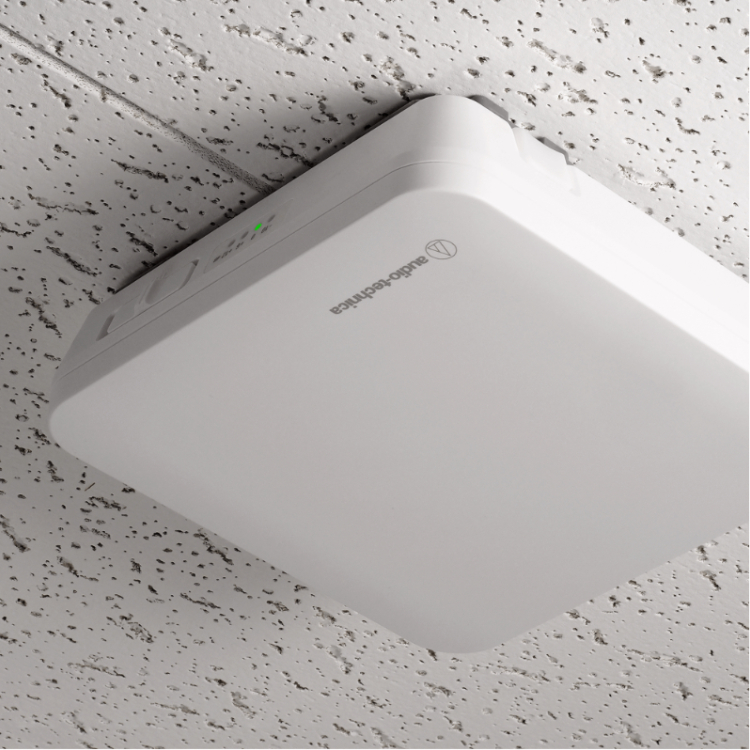

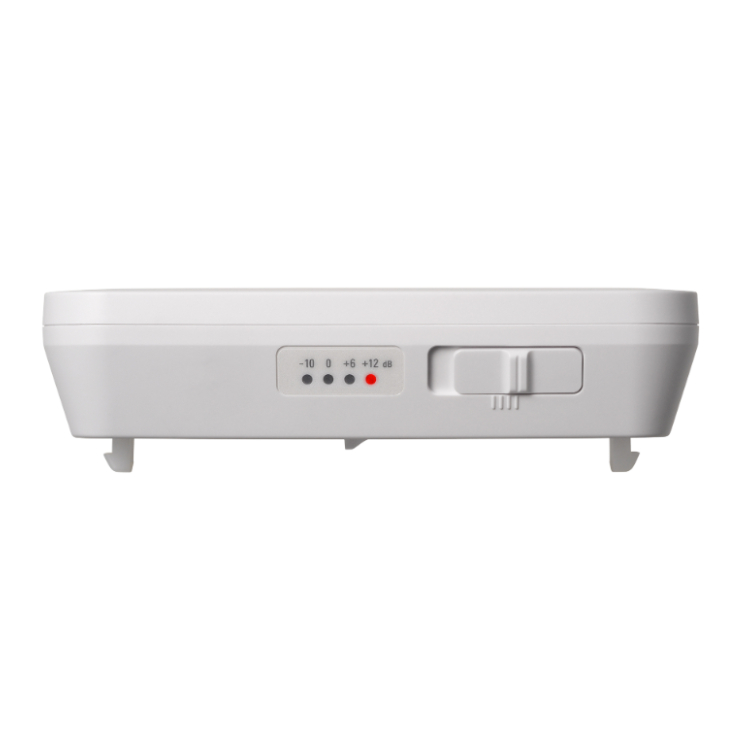

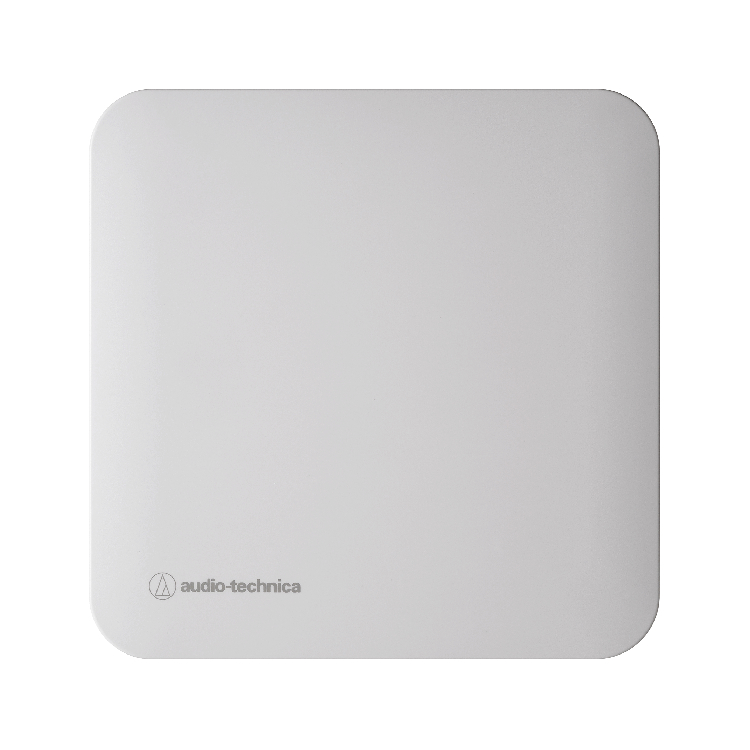

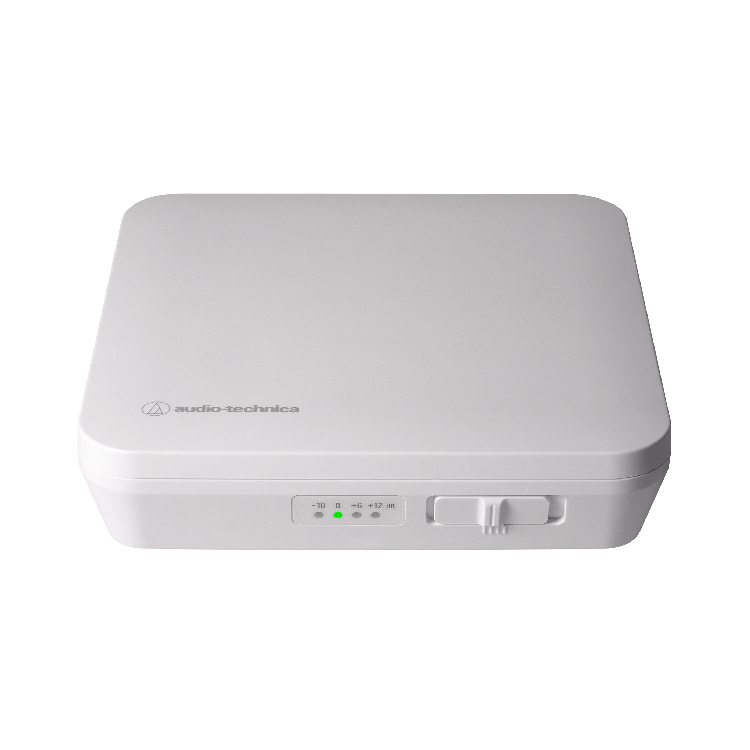

The ATW-A410P is a broadband antenna that can be mounted unobtrusively to almost any room wall or ceiling, thanks to its modern and low-profile design. It features a 4-position switchable amplifier (-10 dB / 0 dB / +6 dB / +12 dB) to compensate for cable loss. The LED indicator allows the user to quickly and easily read the current gain setting
Antenna & Distribution
| Impedance | 50 ohms typical (within specified bandwidth) |
| Gain | -10 dB / 0 dB / +6 dB / +12 dB |
| OIP3 | > 30 dBm typical (within specified bandwidth) |

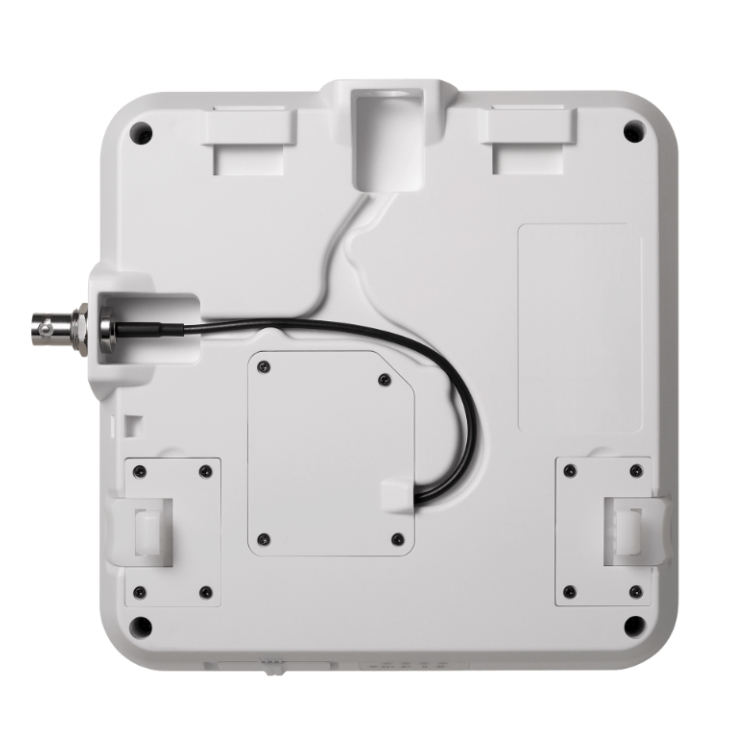

| Termination Type | BNC-J |
| Operating Bandwidth | 470-990 MHz |
