Name: ATW-2110c
SKU: 3722
Availability: OutOfStock

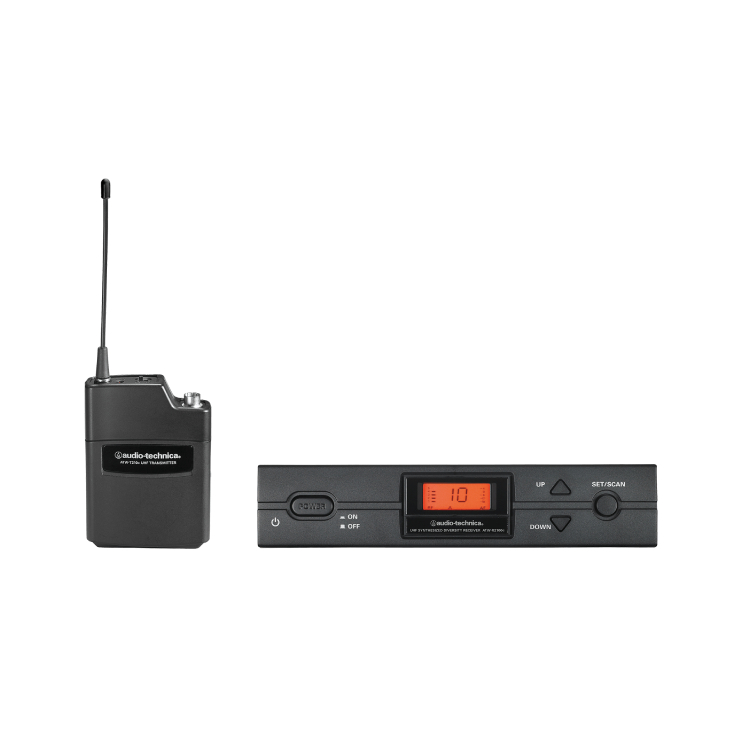

ATW-2110c

2000 Series Wireless Body-pack System

Enquire Now

Reviews

There are no reviews yet.

Be the first to review “ATW-2110c”

SPECIFICATIONS

Overall System

Operating Frequencies	UHF Band D: 656.125 to 678.500 MHz DISCONTINUED IN NORTH AMERICA Band I : 487.125 to 506.500 MHz Band S : 508.125 – 526.825 MHz
Modulation Mode	FM
Maximum Deviation	±40 kHz
Frequency Response	100 Hz to 15 kHz (+1 dB, -3 dB)
Operating Range	100 m (300′), typical Open range environment with no interfering signals.

Total Harmonic Distortion	< 1% (at 1 kHz, ±20 kHz deviation)
Operating Temperature Range	5º C to 45º C 41º F to 113º F Battery and LCD performance may be reduced at very low tempera
Number Of Channels	10 total
Notes	Fourth-generation 2000 Series (“c” version) components: ATW-R2100c receiver ATW-T210c body-pack transmitter ATW-T220c cardioid dynamic microphone/transmitter Click here for “c” version 2000 Series owner’s manual. Third-generation 2000 Series (“b” version) components: ATW-R2100b receiver ATW-T210b body-pack transmitter ATW-T220b cardioid dynamic microphone/transmitter Click here for “b” version 2000 Series owner’s manual. Second-generation 2000 Series (“a” version) components: ATW-R2100a receiver ATW-T210a body-pack transmitter ATW-T220a cardioid dynamic microphone/transmitter Click here for “a” version 2000 Series owner’s manual. First-generation 2000 Series (original) components: ATW-R2100 receiver ATW-T210 body-pack transmitter ATW-T220 cardioid dynamic microphone/transmitter Click here for original 2000 Series owner’s manual.CONSUMER ALERT Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC’s wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones.

Handheld Transmitter

RF Power Output	High: 30 mW; Low: 10 mW (switchable), at 50 ohms
Spurious Emissions	Following federal and national regulations
Microphone Element	Dynamic cardioid
Battery Type	Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included) Recharging power for NiMH batteries (with ATW-CHG2) U.S./Canada/Latin America: 3.2 V DC, 230 mA x2 Other world areas: 3.2 V DC, 320 mA x2
Battery Life	High: 7 hours (alkaline) Low: 9 hours (alkaline) Depending on battery type and use pattern.
Dimensions	232.0 mm (9.13″) long, 48.0 mm (1.89″) diameter
Net Weight	252 g (8.9 oz), without batteries
Accessories Included	AT8456a Quiet-Flex™ stand clamp

Body Pack

RF Power Output	High: 30 mW, Low: 10 mW (switchable), at 50 ohms
Battery Life	High: 7 hours (alkaline) Low: 9 hours (alkaline) Depending on battery type and use pattern.
Battery Type	Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included) Recharging power for NiMH batteries (with ATW-CHG2)U.S./Canada/Latin America: 3.2 V DC, 230 mA x2Other world areas: 3.2 V DC, 320 mA x2
Dimensions	66.0 mm (2.60″) W x 22.5 mm (0.89″) D x 92.3 mm (3.63″) H
Input Connections	Four-pin Locking Connector Pin 1: GND Pin 2: INST INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +9V
Net Weight	81 g (2.9 oz), without batteries
Spurious Emissions	Following federal and national regulations

Receiver

Receiving System	True diversity
Image Rejection	60 dB nominal, 55 dB minimum
RF Sensitivity	20 dBuV at 60 dB S/N ratio (50 ohms termination)
Maximum Output Level	XLR, balanced: +9 dBV, ¼” (6.3 mm), unbalanced: +4 dBV
Antenna Input	BNC-type, 50 ohms Bias voltage 12V DC, 60 mA, each
Power Requirements	12-18V DC, 500 mA
Dimensions	210.0 mm (8.27″) W x162.2 mm (6.39″) D x44.0 mm (1.73″) H,br>Not including BNC connectors or feet.
Weight	1.0 kg (35.3 oz), without accessories
Accessories Included	Two flexible UHF antennas; AC adapter (country dependent); rack-mount adapters
Audio Output Attenuator (ATTN)	Balanced Audio Output Attenuator: Two position switch: 0 / -12 dB
