ATW-DR3120DAN

Reviews

There are no reviews yet.

Be the first to review “ATW-DR3120DAN”

High-quality digital wireless system with a newly developed proprietary Audio-Technica codec for excellent-quality sound
Super-low latency of 2.5ms.
Antenna cascade output allows 5 receivers to be connected so a single pair of antennas can feed up to 10 channels of wireless.
AES256 encryption allows you to transmit confidently and without fear of network intrusion.
The Network-enabled receiver offers network control and monitoring via the Audio-Technica Wireless Manager software.
MIX (Audio MIX) output function of receiver 1 and receiver 2.
Receiver features Dante™ output.

Overall System

Operating Frequencies	Band DE2E: 470.125 to 529.975 MHz Band EE1E: 530.000 to 589.975 MHz Band FF1E: 606.000 to 665.975 MHz
Minimum Frequency Step	25 kHz
Modulation Mode	π/4-shift DQPSK
Frequency Response	20 to 22,000 Hz Depending on the microphone element used.
Operating Range	120 m Open range environment with no interfering signals.

Dynamic Range	ATW-DT3101 (Mic input): 120 dB or higher, A-weighted, typical ATW-DT3101 (Inst input): 108 dB or higher, A-weighted, typical ATW-DT3102: 120 dB or higher, A-weighted, typical
Total Harmonic Distortion	0.1% or less (at 1 kHz, −20 dBFS)
Number Of Channels	Up to 22ch in one 8 MHz TV channel

Handheld Transmitter

RF Power Output	High: 20 mW, Mid: 10 mW, Low: 2 mW
Battery Type	Two alkaline or nickel-metal hydride 1.5 V AA batteries
Battery Life	When using nickel-metal hydride 1.5 V AA batteries: Approx. 7 hours (1900 mAh High), approx. 9 hours (2500 mAh High) When using alkaline 1.5 V AA batteries: Approx. 6 hours (High)
High-pass filter (low-freq. roll-off)	80 Hz, 120 Hz, 160 Hz, 12 dB/octave
Operating Temperature Range	−5°C to +40°C (23°F to 104°F)
Dimensions	193 mm (7.60″) × 37 mm (1.46″) (without microphone capsule)
Net Weight	Approx. 205 g (7.23 oz)
Accessories Included	Carrying case, AT8456a Quiet-Flex™ microphone stand clamp

Body Pack

RF Power Output	High: 20 mW, Mid: 10 mW, Low: 2 mW
Battery Life	When using nickel-metal hydride 1.5 V AA batteries: Approx. 7 hours (1900 mAh High), approx. 9 hours (2500 mAh High) When using alkaline 1.5 V AA batteries: Approx. 6 hours (High)
Battery Type	Two alkaline or nickel-metal hydride 1.5 V AA batteries
Dimensions	64 mm (2.52″) × 23 mm (0.91″) × 82 mm (3.23″) (W × D × H)
Input Connections	Four pin locking connector (Pin 1: GND, pin 2: INST INPUT, pin 3: MIC INPUT, pin 4: DC BIAS +5 V)
Net Weight	Approx. 105 g (3.7 oz)
High-pass (low-freq. roll-off)	80 Hz, 120 Hz, 160 Hz, 12 dB/octave
Operating Temperature Range	−5°C to +40°C (23°F to 104°F)
Accessories Included	Carrying case

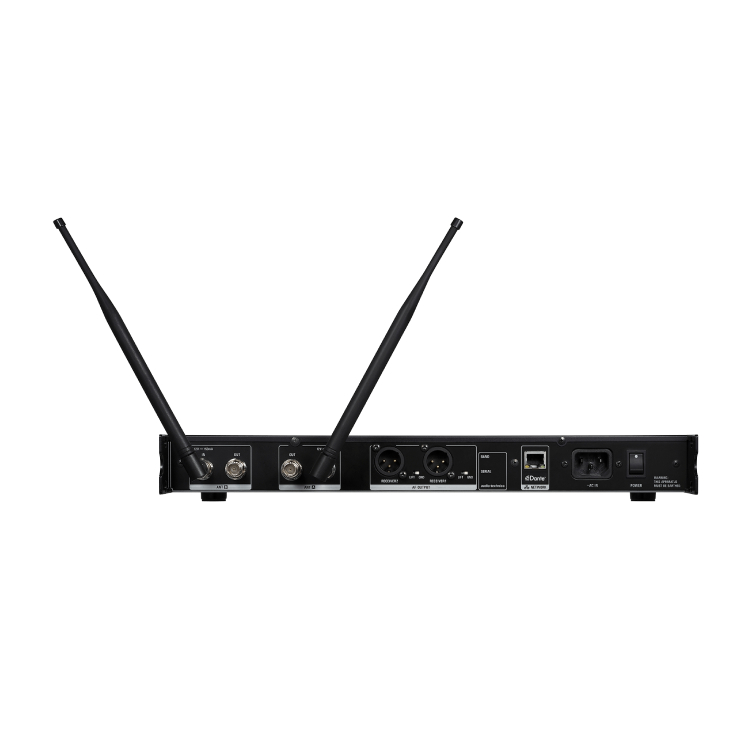

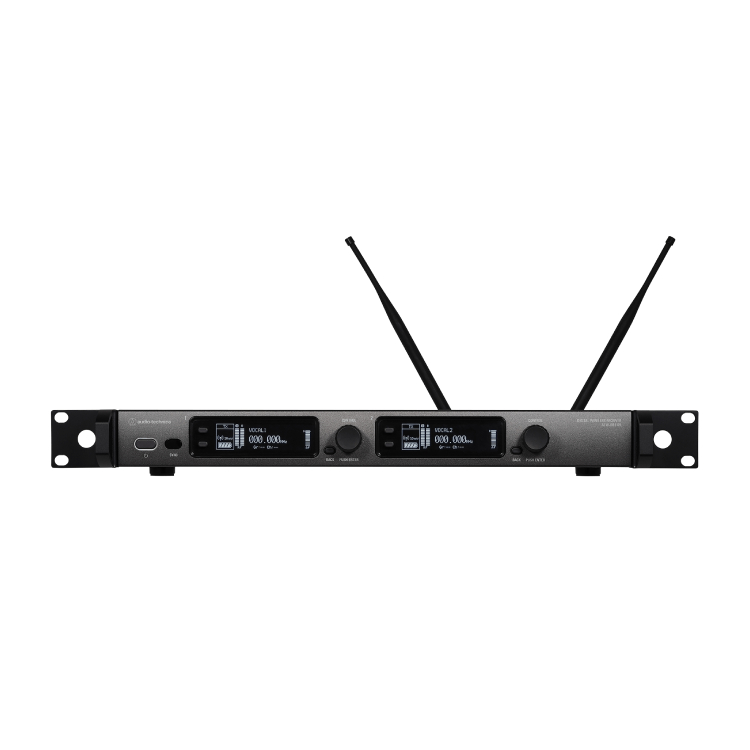

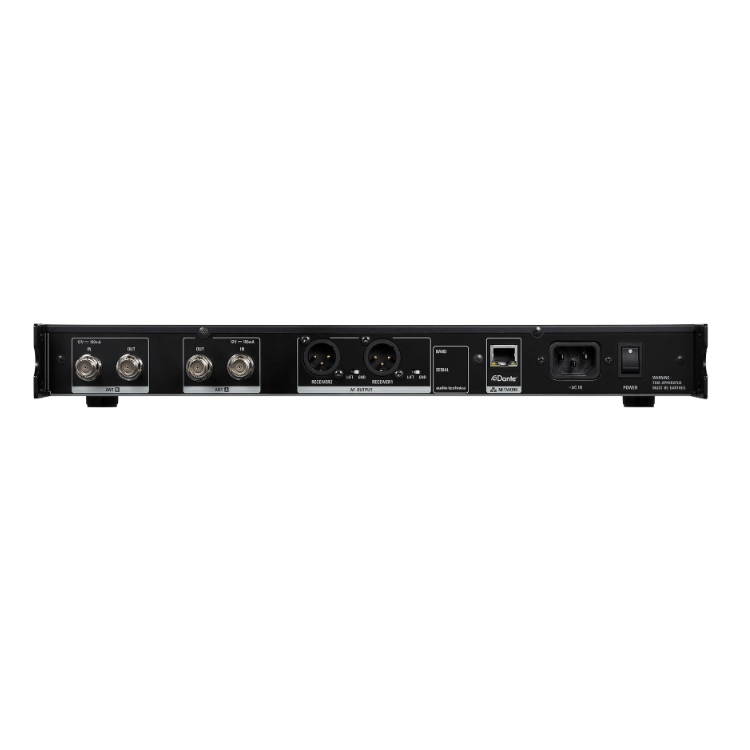

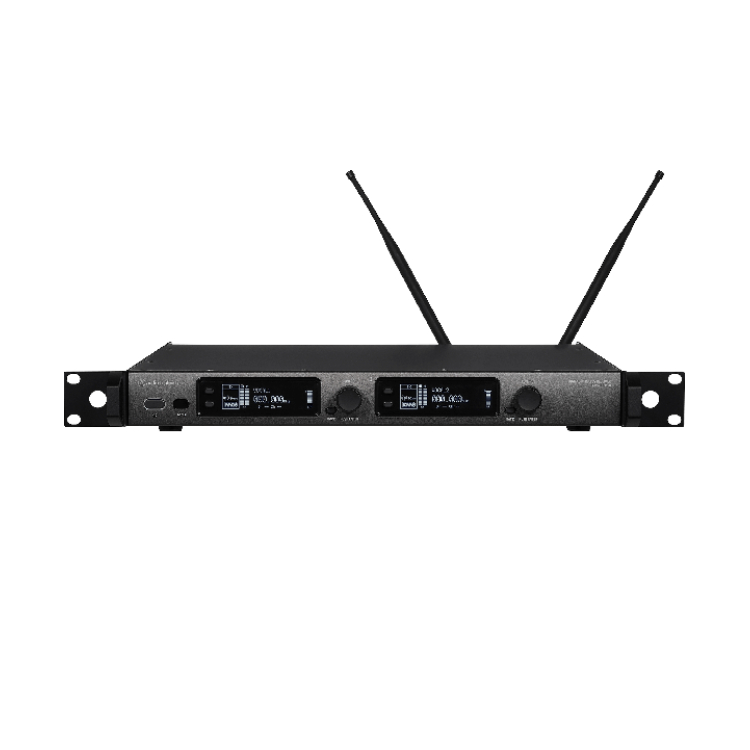

Receiver

Receiving System	True Diversity
Image Rejection	70 dB
RF Sensitivity	−98 dBm (10−5 BER)
Maximum Output Level	18 dBV (Line), −12 dBV (Mic)
Antenna Input	BNC-type, 50 ohms
Antenna Power	12 VDC, 150 mA (combined)
Power Supply	100 to 240 VAC (50/60 Hz)
Operating Temperature Range	−5°C to +40°C (23°F to 104°F)
Dimensions	483 mm (19.02″) × 385 mm (15.16″) × 44 mm (1.73″) (W × D × H)
Weight	Approx. 4.1 kg (144.6 oz)
Accessories Included	1/2λ whip antenna × 2, power cable, rubber legs × 4
