ATW-R3210

ATW-R3210

3000 Series (fourth generation) diversity receiver

Enquire Now
SKU: N/A Category:

Additional information

Frequency

,

Reviews

There are no reviews yet.

Be the first to review “ATW-R3210”

Your email address will not be published. Required fields are marked *

Related products

ATW-R3210

Buy now Enquire Now

Overview

ATW-R3210

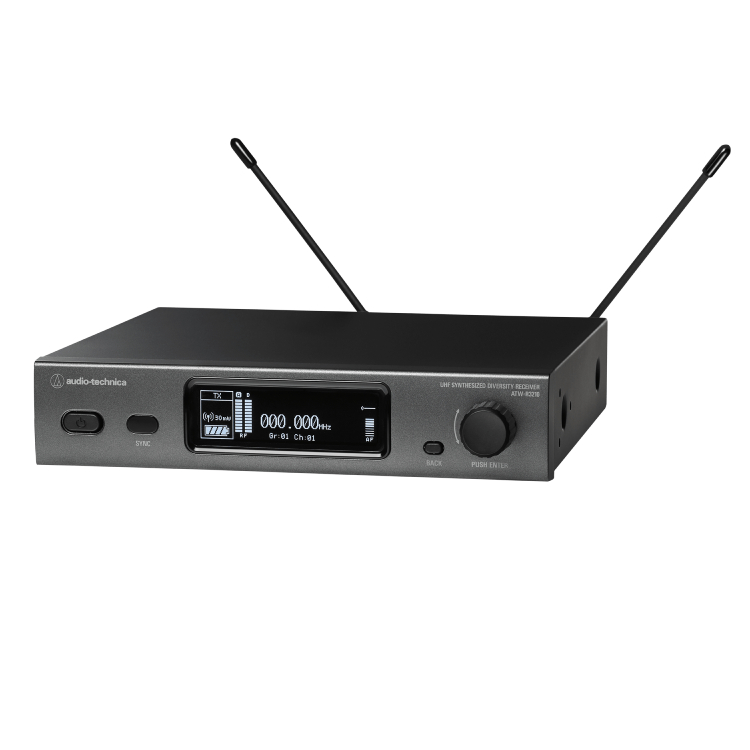

3000 Series (fourth generation) diversity receiver

  • Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment.
  • True Diversity operation reduces dropouts
  • Frequency scan and IR sync functionality for ease of setup
  • Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
  • Receiver include OLED screens for optimal readout of key settings and alerts
  • Antenna power available for powered antennas and other in-line RF devices
  • Ground-lift switch helps eliminate audible hum caused by ground loops
  • Balanced and unbalanced audio output jacks

Overall System

Operating Frequencies Band DE2: 470.125 to 529.975 MHz
Band EE1: 530.000 to 589.975 MHz
Band EF1: 590.000 to 649.975 MHz
Band FG1: 650.000 to 699.875 MHz
Band GH2: 794.100 to 805.900 MHz
Band HH2: 821.100 to 831.900 MHz and 863.100
Minimum Frequency Step 25 kHz
Modulation Mode FM
Maximum Deviation ATW-T3201: ±38 kHz (THD:10%)
ATW-T3202: ±36 kHz (THD:10%)
Frequency Response ATW-T3201: 31 Hz to 15500 Hz
ATW-T3202: 25 Hz to 16700 Hz
