ATW-R5220

ATW-R5220

Audio-Technica’s third-generation 5000 Series wireless system

Designed for use on professional tours, in stadiums, concert halls, festivals, houses of worship and other demanding audio environments, the Audio-Technica 5000 Series provides incredible audio quality and proven, critically acclaimed performance for artists, broadcasters and presenters worldwide.

Audio-Technica’s third-generation, dual-receiver 5000 Series offers the highest-quality wireless live sound, with dual-compander circuitry that processes high and low frequencies separately and True Diversity operation. The receiver features a tuning bandwidth of 230 MHz (DG1): 470–700 MHz or a tuning bandwidth of 120 MHz (GH1): 700–820 MHz. You have the option of selecting a standard receiver (ATW-R5220) with two balanced XLR outputs or a receiver (ATW-R5220DAN) that also includes a Dante output. An antenna cascade output connects up to eight receivers, so a single pair of antennas can feed up to 16 channels of wireless. More features are the auto squelch function which automatically adjusts the squelch setting to maximize operating range while minimizing potential interference and a backup frequency that can be quickly swapped by pressing the transmitter’s multifunction button in the event of unexpected interference. Software enables remote monitoring and control of the wireless system.

Two transmitters are available for use with the 5000 Series: ATW-T5201 body-pack transmitter and ATW-T5202 handheld transmitter.

5000 Series components and compatible accessories are offered as individual, à la carte products to give you the greatest possible flexibility in constructing a system that fits your needs.

Please note that some frequency bands might not be available in your territory or could come with limited tuning bandwidth / transmitting power due to local regulations. For assistance with frequency coordination, please contact your regional Audio-Technica customer service representative.

• Dual-channel receiver provides 230 MHz (DG1: 470–700 MHz) or 120 MHz (GH1: 700–820 MHz) UHF tuning bandwidth for maximum versatility in an ever-congested RF environment
• Antenna cascade output allows 8 receivers to be connected so that a single pair of antennas can feed up to 16 channels of wireless. These connectors also provide a simple RF cable check feature to aid in RF troubleshooting
• Auto squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
• Dual compander circuitry processes high and low frequencies separately for unmatched audio quality

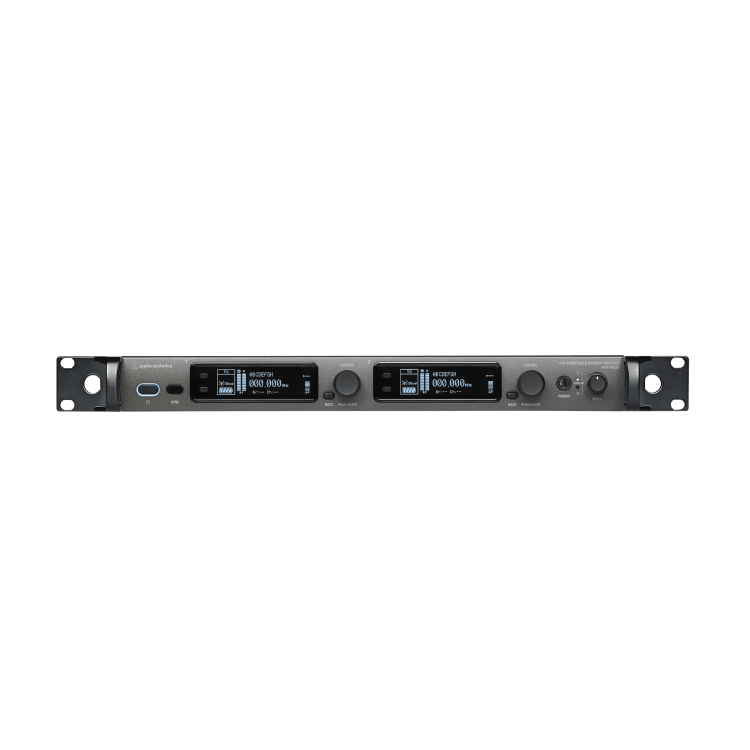

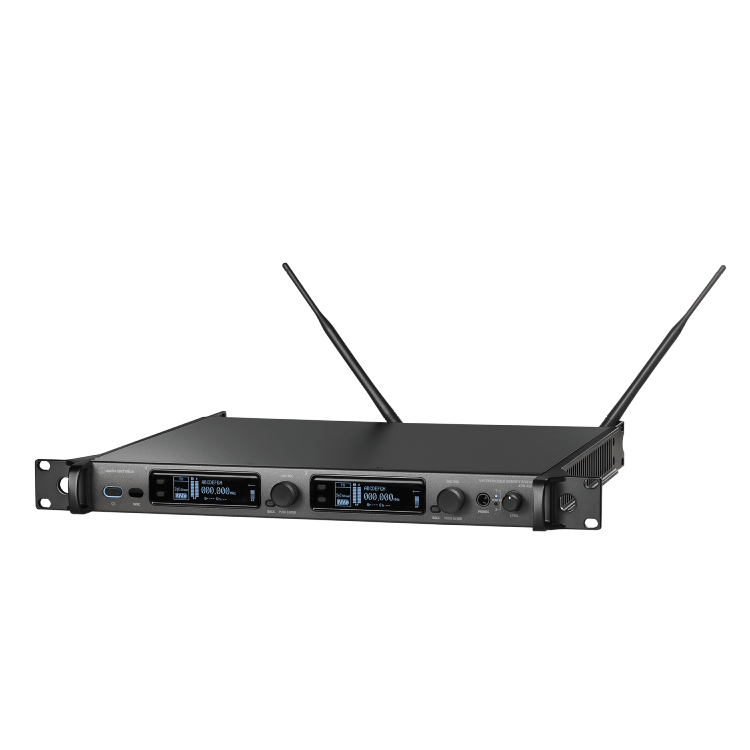

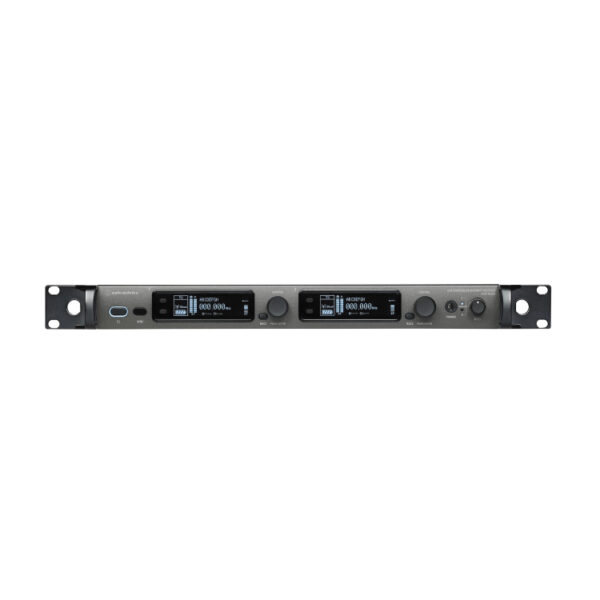

• The full-rack receiver chassis holds two independent receivers, and offers antenna power, frequency scan and IR sync functionality, a ground-lift switch, and a front-panel headphone jack
• Dual-mode, highly visible OLED receiver screen can switch between standard view or a performance view that highlights key metering
• Receiver is available with two balanced XLR outputs (ATW-R5220) or with two balanced XLR outputs and a Dante output (ATW-R5220DAN)
• Advanced digital Tone Lock™ squelch effectively blocks stray RF; the digitally encoded tone also communicates transmitter data for receiver display
• Wireless network monitoring and control software
• 5000 Series components are offered individually – not as preconfigured systems – for greater flexibility

“Dual compander for incredible audio quality”

Designed for use on professional tours, in stadiums, concert halls, festivals, houses of worship and other demanding audio environments, the Audio-Technica 5000 Series provides incredible audio quality and proven, critically acclaimed performance for artists, broadcasters and presenters worldwide.

“Comprehensive tuning bandwith”

For maximum versatility in ever-congested RF environment the dual-channel receiver provides a tuning bandwidth of 230 MHz (DG1: 470–700 MHz.). Both transmitters (HH/ATW-T5202 and BP/ATW-T5201) are available in two different frequency ranges – DE1 (470–590 MHz) and EG1 (580–700 MHz) – to provide complete coverage of the receiver’s bandwidth.

“Cascade output saves using an antenna distributor”

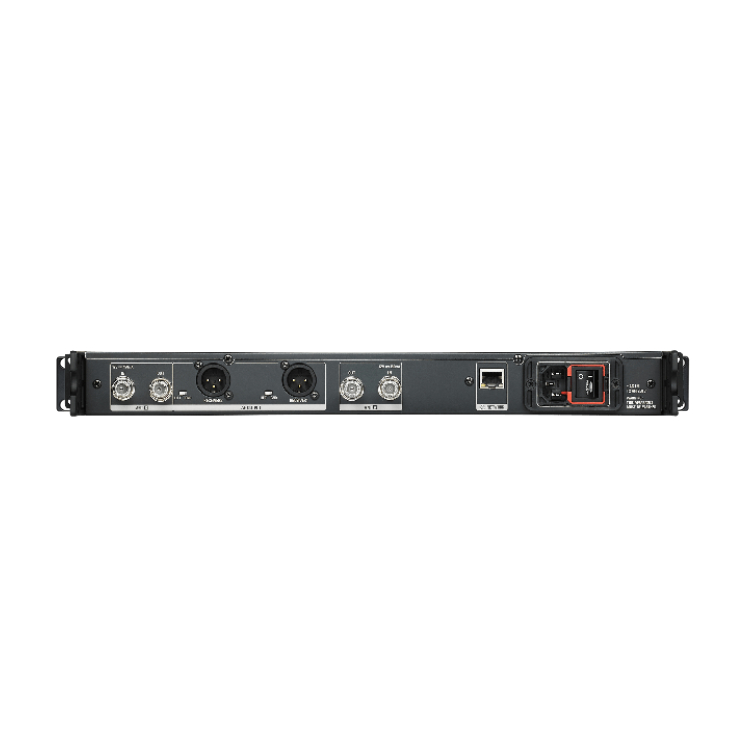

The two antenna cascade outputs on the back of the unit can connect up to eight receivers, allowing a single pair of antennas to power up to 16 wireless channels.

Wide Bandwidth

Dual-channel receiver provides a tuning bandwidth of 230 MHz (DG1: 470–700 MHz) or 120 MHz (GH1: 700–820 MHz).

IR-Sync

IR-Sync functionality for a quick transfer of settings between transmitter and receiver.

Dante Optional

Receiver is available with two balanced XLR outputs (ATW-R5220) or with two balanced XLR outputs and a Dante output (ATW-R5220DAN).

OLED screens

Dual-mode, highly visible OLED receiver screen can switch between standard view or a performance view that highlights key metering
