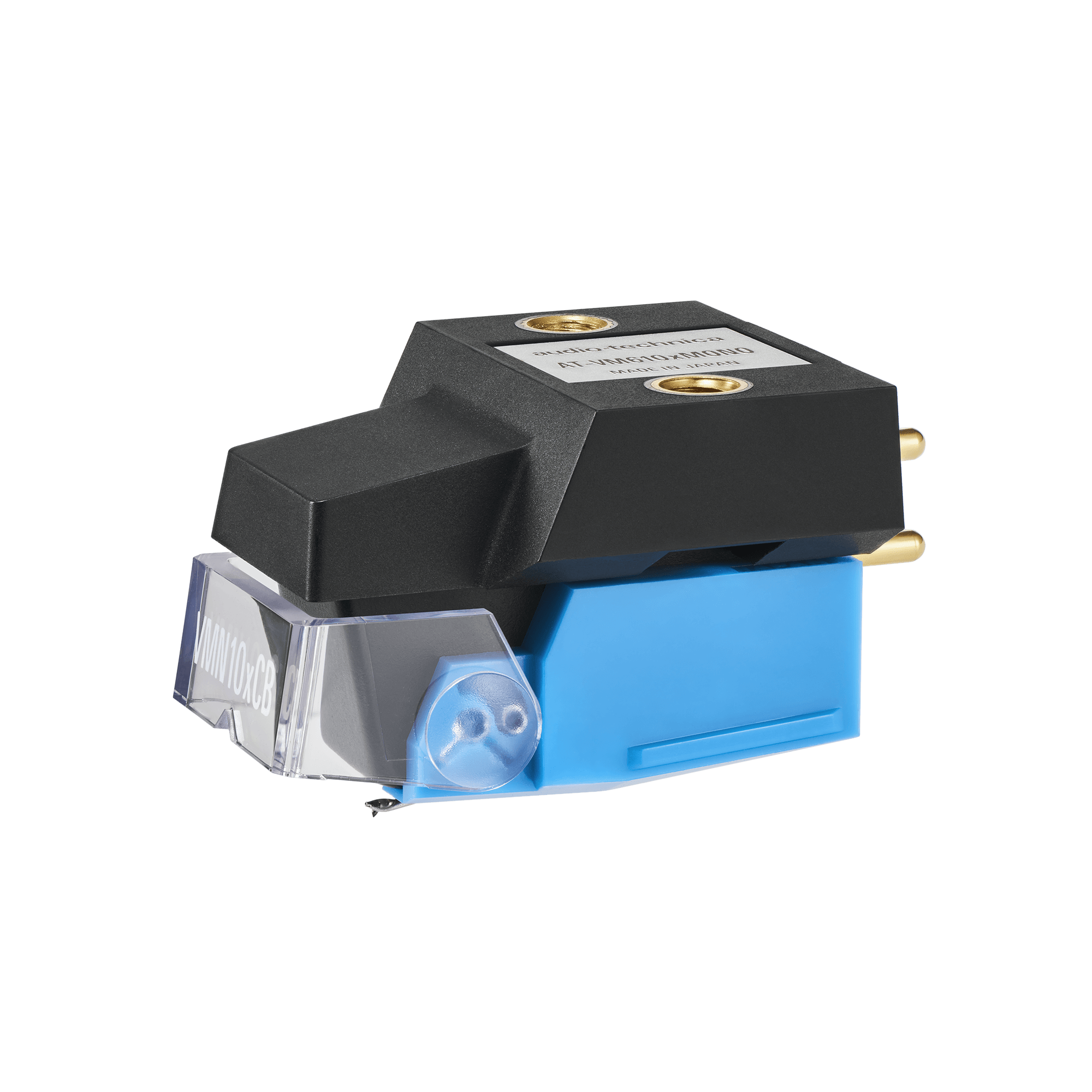

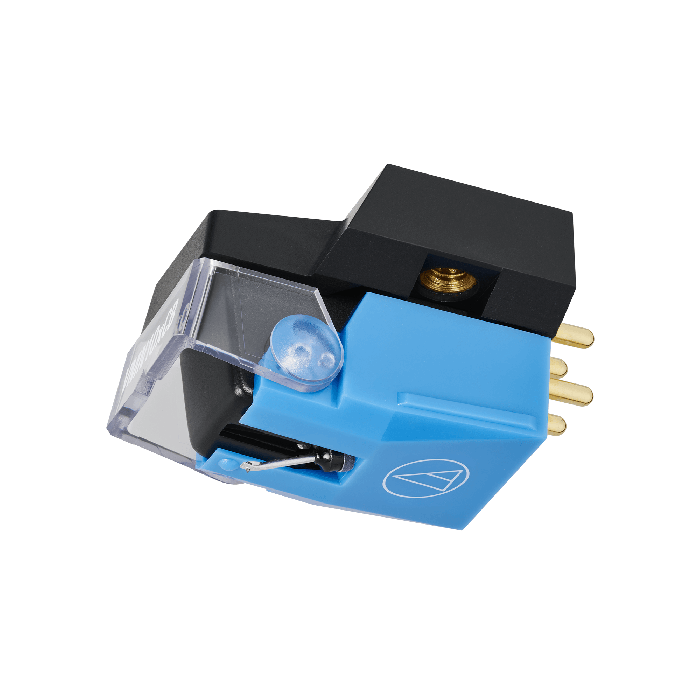

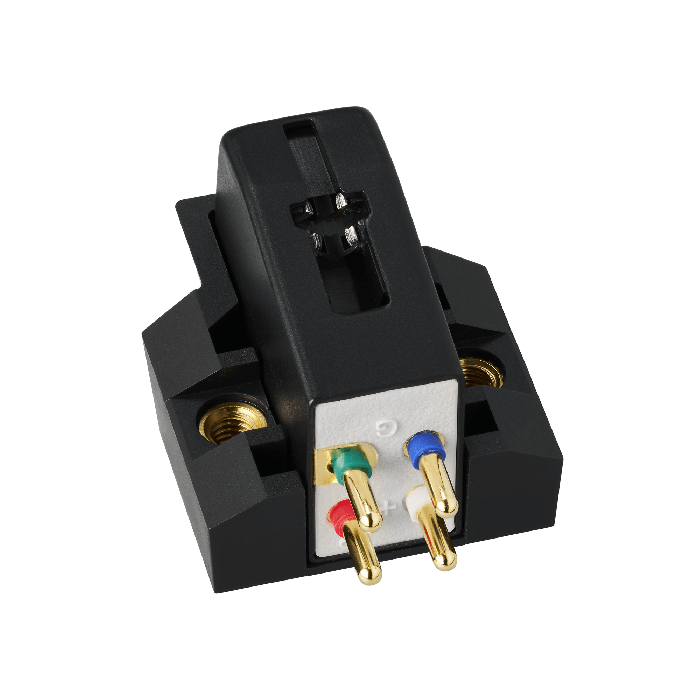

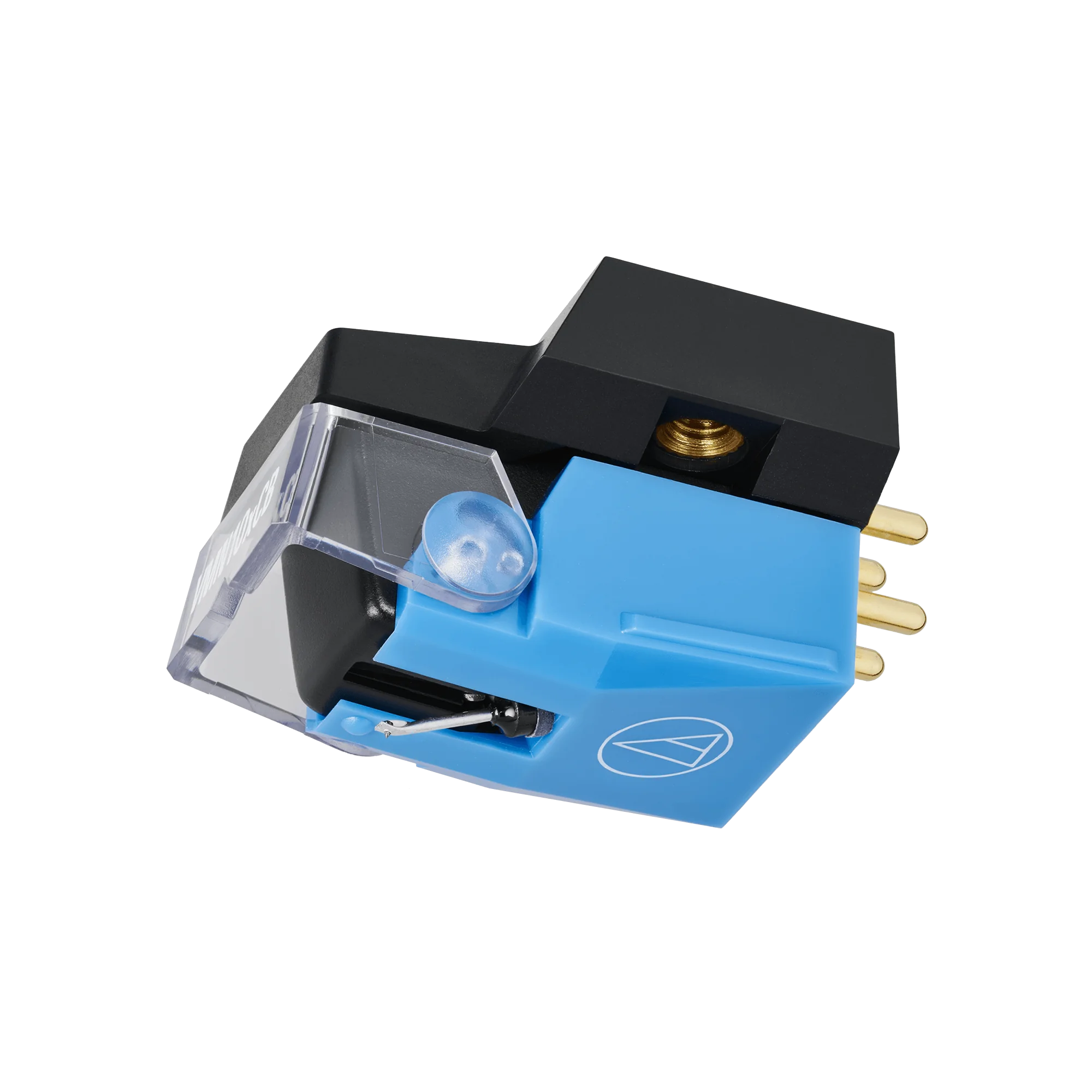

AT-VM610xMONO

AT-VM610xMONO

Original price was: ₹17,184.Current price is: ₹15,999.

/ Dual Moving Magnet Cartridge

Out of stock

Enquire Now
Category:

Related products

  • AT-VMx dual moving magnet cartridge with 0.6 mil conical bonded stylus
  • 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity
  • Paratoroidal coils improve generating efficiency for enhanced transient response
  • PCUHD (Pure Copper Ultra High Drawability) coils – and fewer coil turns – deliver highly responsive, three-dimensional sound reproduction with excellent transient response
  • Threaded inserts make cartridge easier to mount, especially to integrated tonearms
  • V-cut in the flip-up stylus protector shows stylus position, serving as a guide for lowering the stylus onto a record
  • Durable low-resonance polymer housing
  • Aluminum cantilever
  • Mono body terminating left and right channels reduces surface noise
  • Compatible with any turntable headshell that accepts 1/2″ cartridges

AT-VM610xMONO

Buy now Enquire Now

Overview Image

Overview

AT-VM610xMONO

The AT-VMx series brings new warmth and realism to Audio-Technica’s premium dual moving magnet (MM) cartridge line, delivering an expansive soundstage that’s alive with musical detail. This latest renewal of the line introduces material and design changes to further refine the VM sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.

As its name indicates, the AT-VM610xMONO is designed for playing mono records. The dual magnets in this cartridge are internally connected to reduce record noise and obtain a highly focused “center” sound image that stereo cartridges can’t provide.

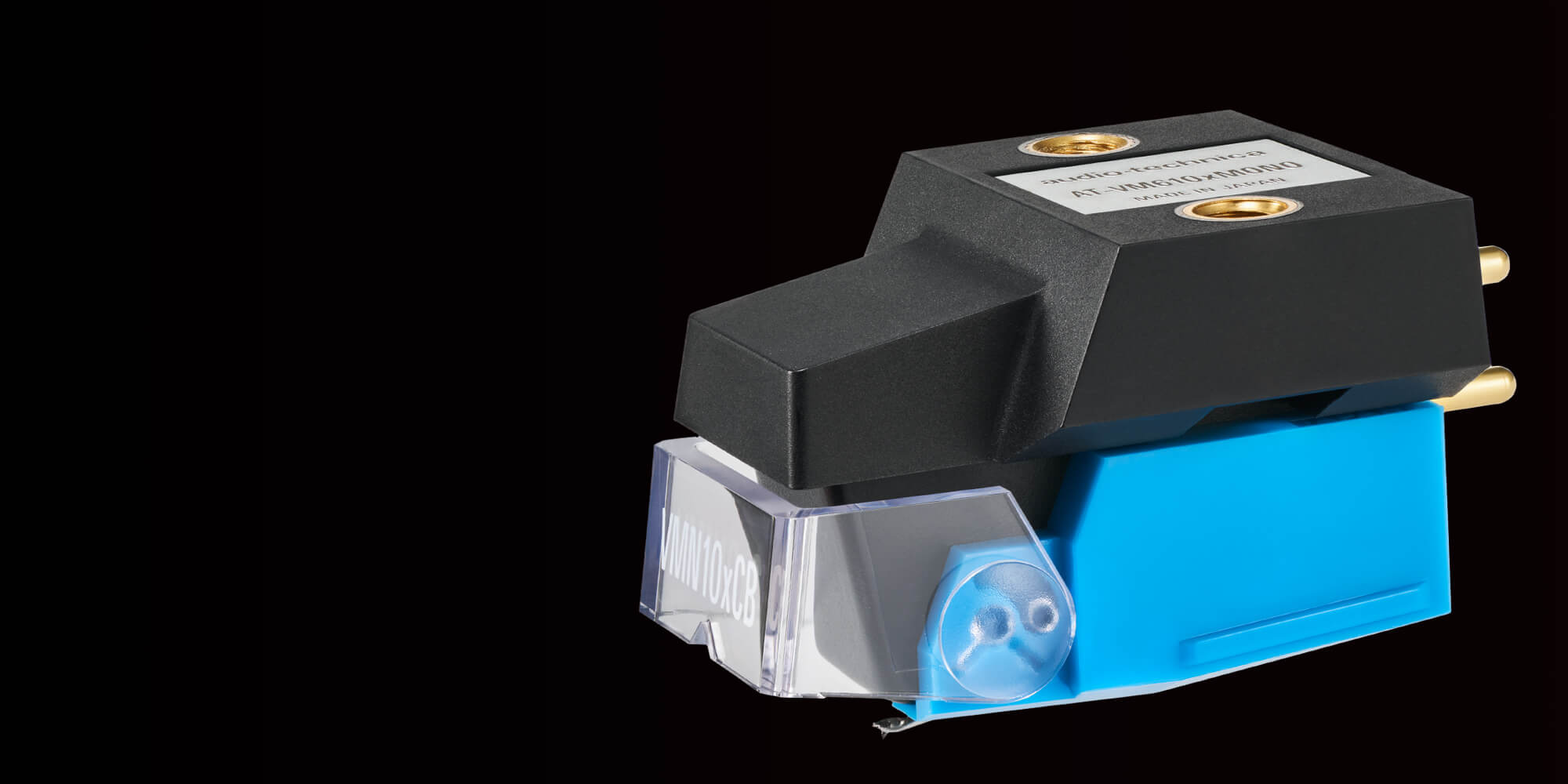

Easy to Install & Use

Convenience Upgrades

Each AT-VMx cartridge body has threaded inserts, enabling it to be mounted to a headshell with just two screws – no nuts required. And the redesigned stylus protector now includes a V-cut for easy reference of the stylus’s position when lowering it onto a record.

Overview Image

Moving Magnet

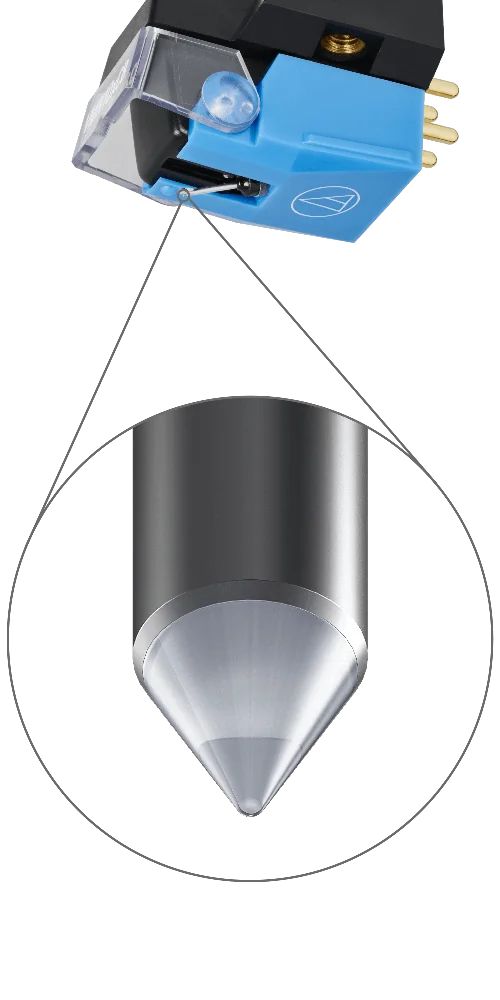

Conical Bonded

Made in Japan

Expansive Soundstage

Overview Image

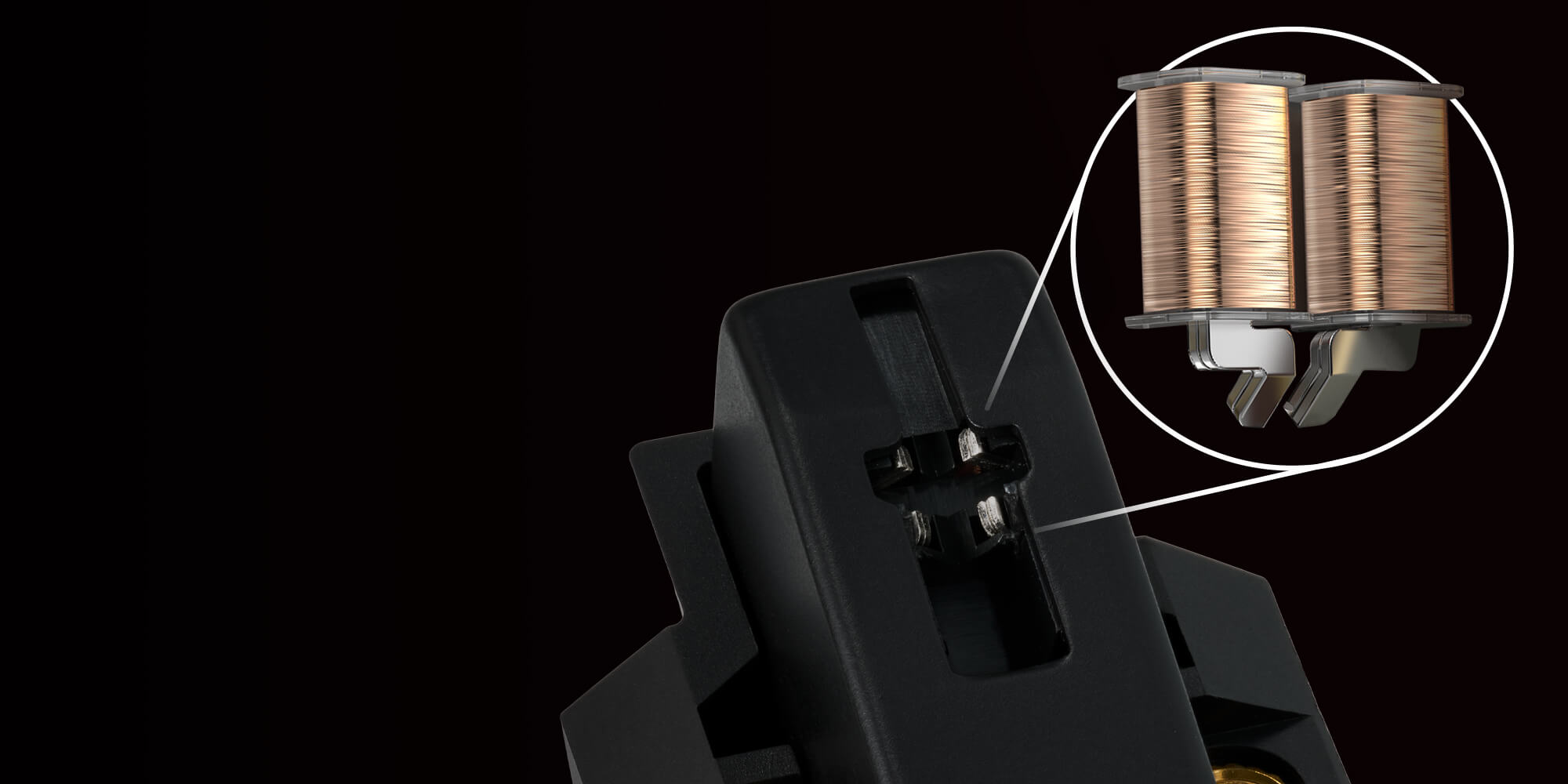

Highly Efficient Generator

Premium PCUHD® (Pure Copper Ultra High Drawability) Coils

The paratoroidal coil construction of the cartridge’s generator – two PCUHD coils per channel, one stacked behind the other – greatly improves electromagnetic performance, while a slight reduction in coil turns* enhances transient response for clean, lifelike sound.

*Compared to VM series cartridges.

Overview Image

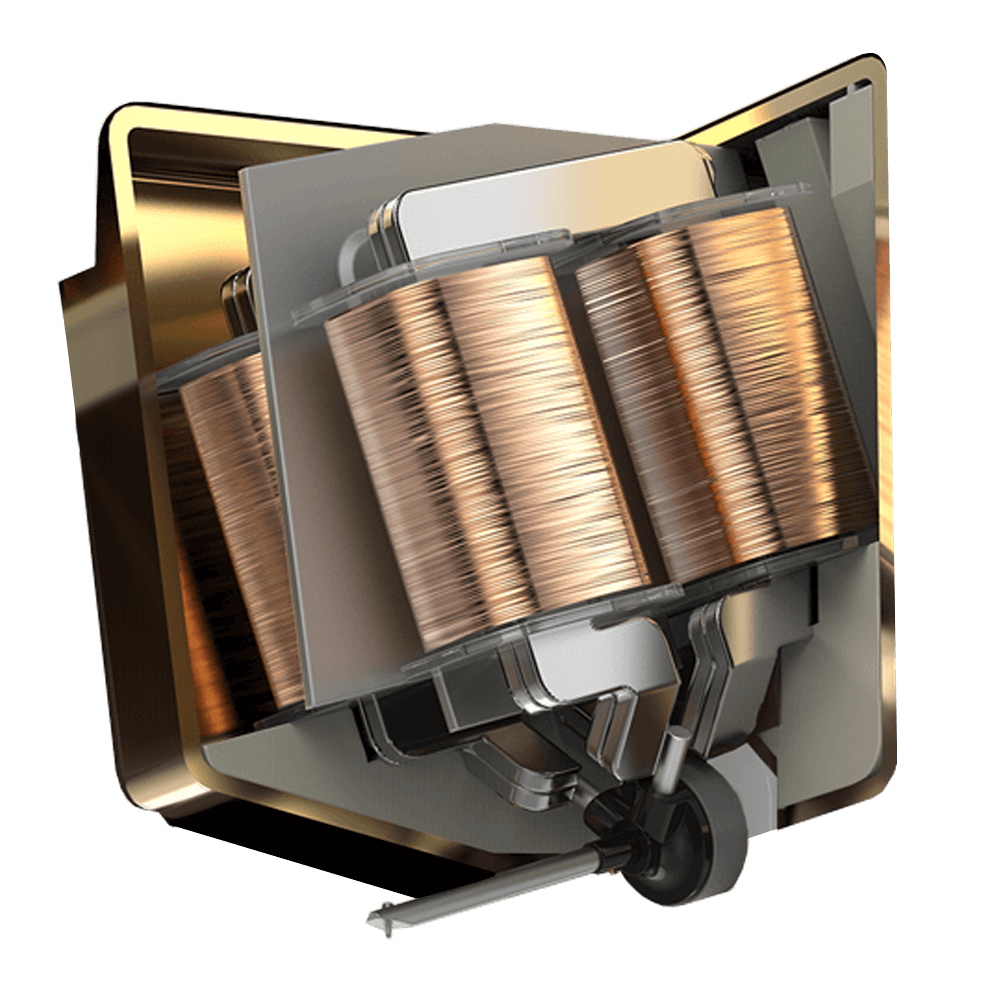

AT-VMx – Vertical Dual Magnet Design

All in the Design

The Vertical Dual Magnet (VM) design closely mirrors the cutter head used to make the vinyl master.

  • AT-VMx dual moving magnet cartridge with 0.6 mil conical bonded stylus
  • 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity
  • Paratoroidal coils improve generating efficiency for enhanced transient response
  • PCUHD (Pure Copper Ultra High Drawability) coils – and fewer coil turns – deliver highly responsive, three-dimensional sound reproduction with excellent transient response
  • Threaded inserts make cartridge easier to mount, especially to integrated tonearms
  • V-cut in the flip-up stylus protector shows stylus position, serving as a guide for lowering the stylus onto a record
  • Durable low-resonance polymer housing
  • Aluminum cantilever
  • Mono body terminating left and right channels reduces surface noise
  • Compatible with any turntable headshell that accepts 1/2″ cartridges

Cartridge & Stylus Frequency Response 20 to 20,000 Hz Vertical Tracking Angle 20° Tracking Force 1.8 to 2.2 g (2.0 g standard) Stylus Construction Conical bonded Recommended Load Impedance 47 k ohms Coil Impedance 1.6 k ohms (1 kHz) DC Resistance 375 ohms Coil Inductance 240 mH (1 kHz) Output Voltage 5.0 mV (1 kHz, 5 cm/sec.) Horizontal/Vertical Output Ratio 20 dB (1 kHz) Cantilever Aluminum pipe Static Compliance 23 × 10-6 cm/dyne Dynamic Compliance 7 × 10-6 cm/dyne (100 Hz) Dimensions 28.0 mm (1.1”) × 18.3 mm (0.72”) × 17.6 mm (0.69”) (H × W × D) Accessories Included Cartridge installation screws** (M2.6) (10.0 mm (0.39”) × 2, 8.0 mm (0.31”) × 2, 5.0 mm (0.20”) × 2), Washer × 2 Threaded Hole M2.6 × 2 Recommended Load Capacitance 150 to 250 pF Replacement Stylus AT-VMN10xCB* (sold separately) Stylus Curvature Radius 0.6 mil Type VM Weight 7.2 g (0.25 oz) Notes *The replacement stylus of this product is used for AT-VMx series products. In this series, we offer replacement styli with
different stylus tip structures and point shapes.
**Cartridge installation screws (5.0 mm (0.20”)) x 2 are used to secure the cartridge in the box at the time of purchase. Be sure
to keep and not lose these after removing the cartridge from the box.
For product improvement, the product is subject to modification without notice.

Warranty Coverage

All Audio-Technica products are backed by a 1-Year Manufacturer Warranty covering manufacturing defects under normal usage conditions.

  • Warranty starts from the date of purchase.
  • Valid only on original products purchased from authorized sellers.
  • Invoice is required to claim warranty support.

Return & Replacement Policy

We offer a 7-Day Replacement Policy for products received in damaged, defective, or incorrect condition.

  • Product must be unused and in original packaging.
  • All accessories and manuals must be included.
  • Replacement requests must be raised within 7 days of delivery.

Non-Returnable Conditions

  • Damage caused due to misuse, accidents, or improper handling.
  • Normal wear and tear over time.
  • Products without original packaging or invoice.

For any warranty or return assistance, please contact our support team with your order ID and invoice details.
