Audio TechnicaAudio TechnicaOverview

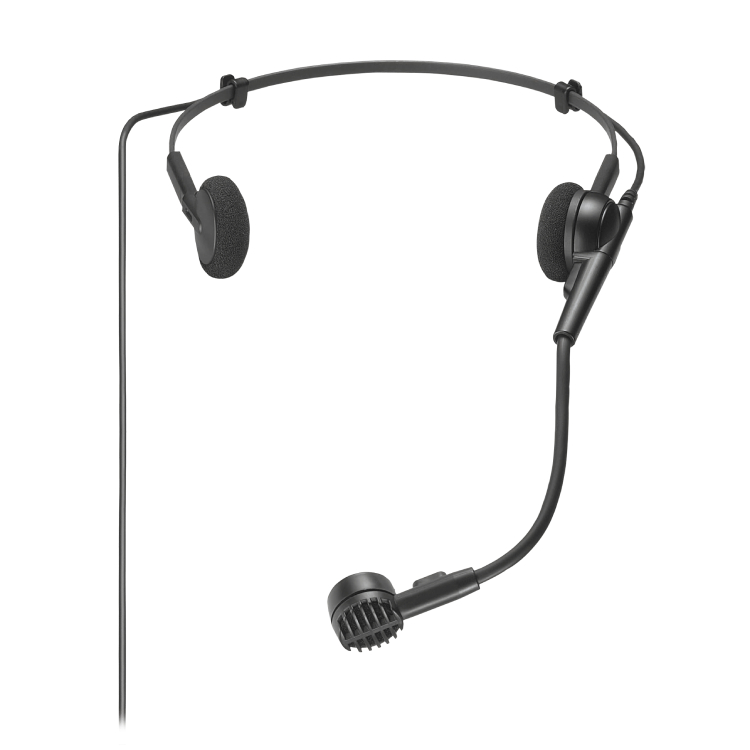

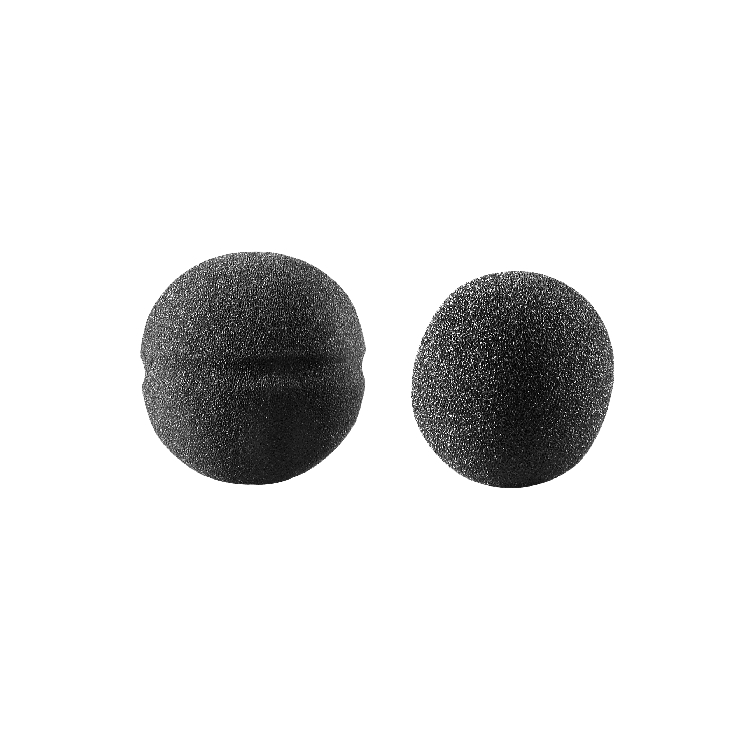

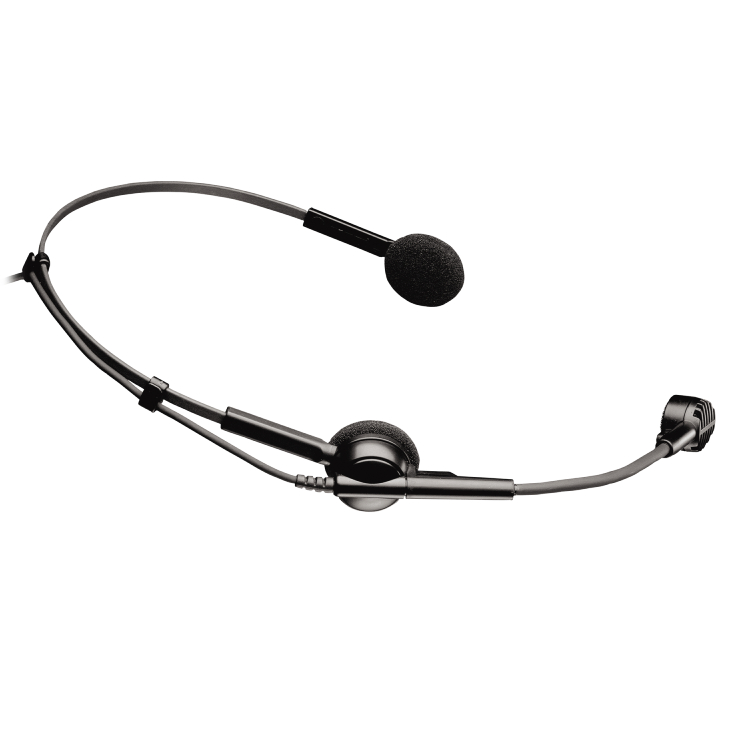

With a pivot-mounted flexible boom that can be positioned on either the left or right side of the head, the ATM75 headworn microphone delivers professional-quality vocal pickup with hands-free operation. Includes AT8139L large windscreen, AT8139S small windscreen, and AT8439 cable clip.
Available configurations:
ATM75cH: 55″ (1.4 m) permanently attached miniature cable terminated with a screw-down 4-pin connector for use with Audio-Technica cH-style body-pack wireless transmitters.
ATM75cW: 55″ (1.4 m) permanently attached miniature cable terminated with a locking 4-pin connector for use with Audio-Technica cW-style body-pack wireless transmitters.
ATM75c: 7.2’ (2.2 m) permanently attached miniature cable (unterminated).
Microphones
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 100 – 13,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Open Circuit Sensitivity | Phantom: -51 dB (2.8 mV) re 1V at 1 Pa Battery: -53 dB (2.2 mV) re 1V at 1 Pa |
