Overview

U853R

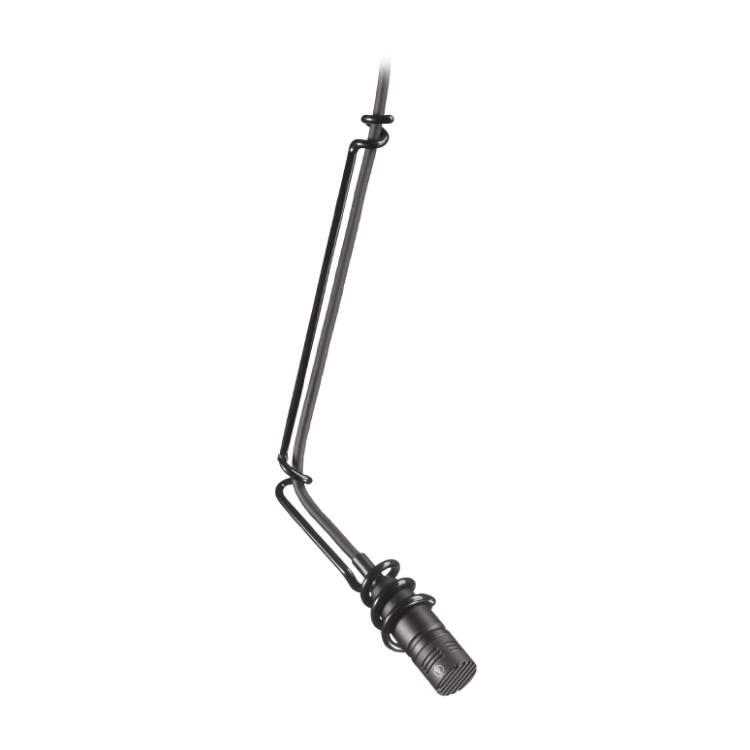

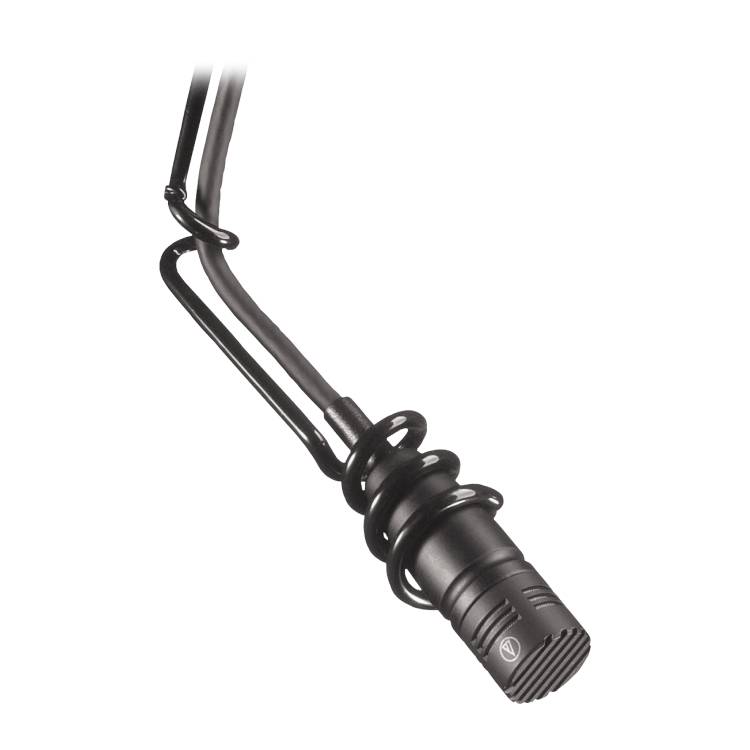

Perfect for speech, theater, orchestra, and choir sound reinforcement and recording, the U853 condenser hanging microphone is equipped with UniGuard® innovations that offer unsurpassed immunity from radio frequency interference. This phantom-powered microphone accepts interchangeable elements – omnidirectional (360°), cardioid (120°), hypercardioid (100°), and UniLine® (90°) – available separately.

Available configurations:

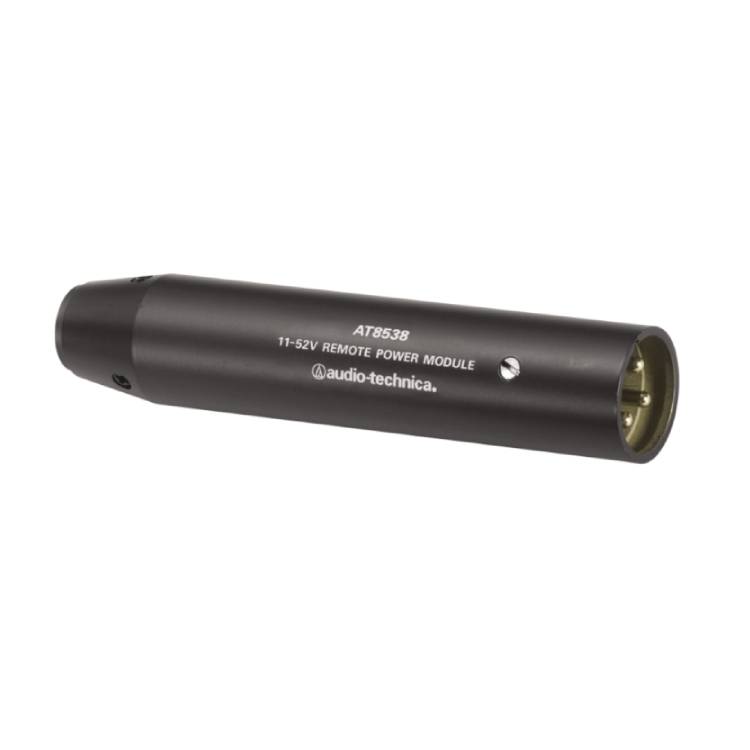

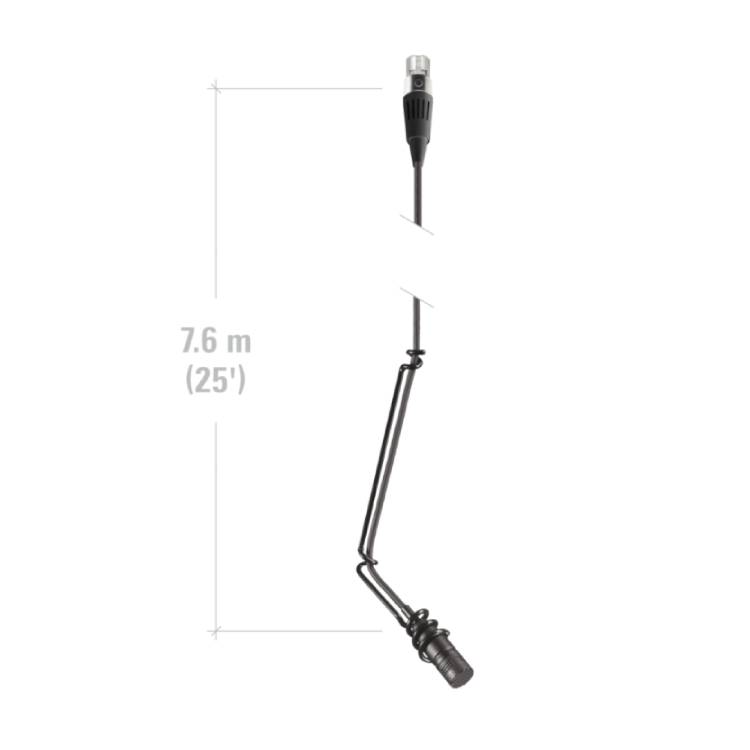

U853R: cardioid polar pattern (120° acceptance angle); 25.0′ (7.6 m) cable terminated with a TA3F connector for use with the included AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); black finish.

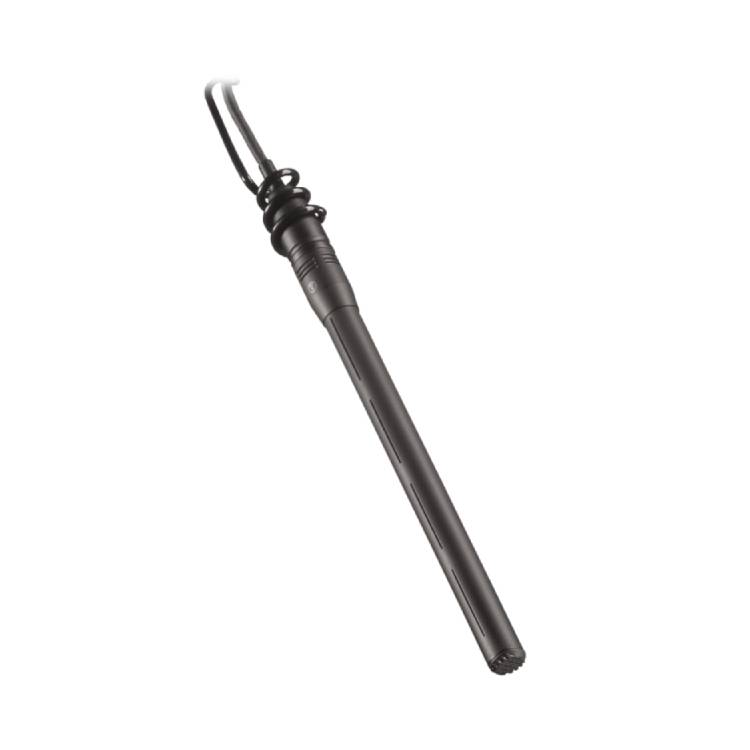

U853RU: UniLine polar pattern (90° acceptance angle); 25.0′ (7.6 m) cable terminated with a TA3F connector for use with the included AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); black finish.

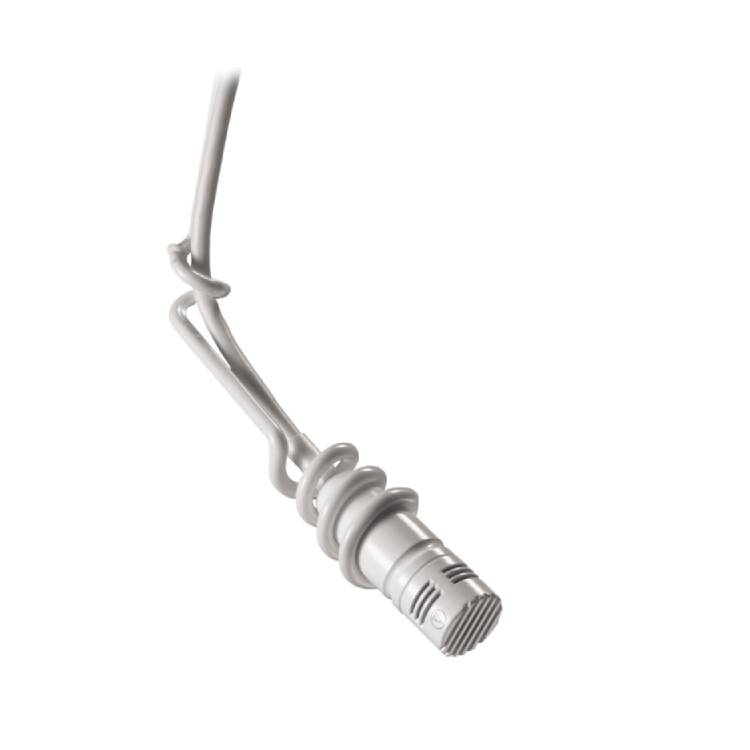

U853RW: cardioid polar pattern (120° acceptance angle); 25.0′ (7.6 m) cable terminated with a TA3F connector for use with the included AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); white finish.

U853RWU: UniLine polar pattern (90° acceptance angle); 25.0′ (7.6 m) cable terminated with a TA3F connector for use with the included AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); white finish.

  • Designed for suspension over choirs, instrumental groups and theater stages

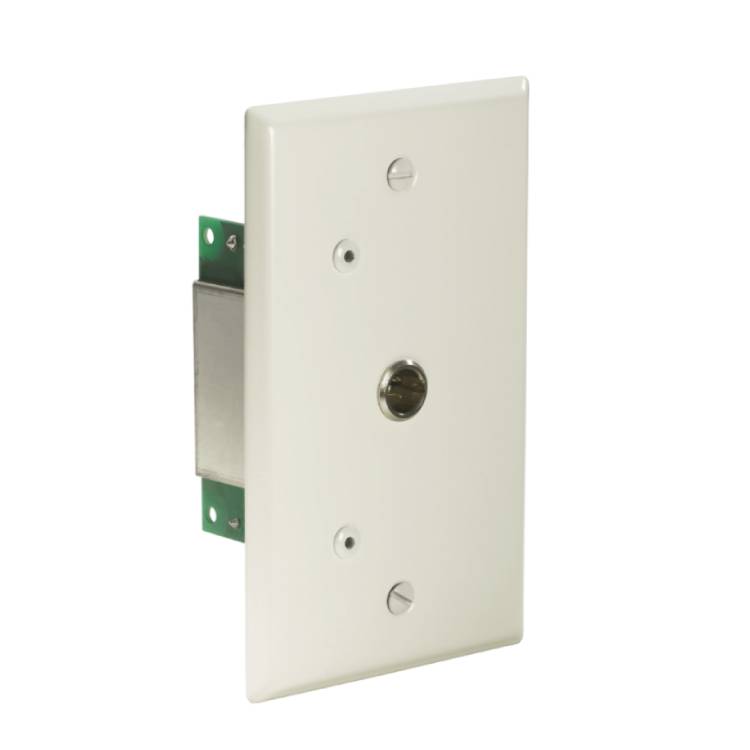

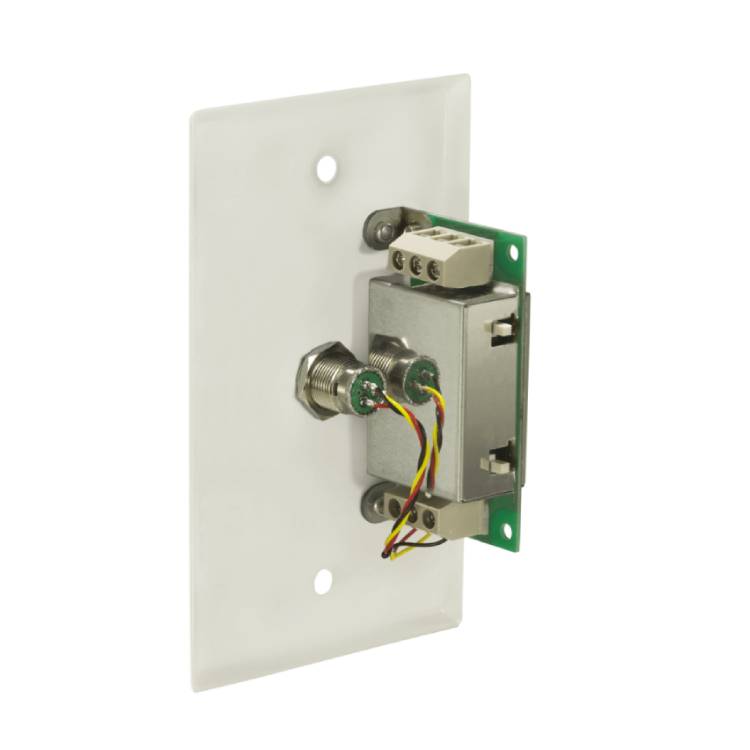

  • Wall/ceiling plate power module permits permanent installation in standard metal U.S. single gang electrical box
  • Superior off-axis rejection for maximum gain before feedback
  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
  • Accepts interchangeable elements to permit angle of acceptance from 90° to 360°
  • Low-profile design with low-reflectance finish for minimum visibility

Microphones

Element Permanently polarized condenser
Frequency Response 30 – 20,000 Hz
Low Frequency Roll Off 80 Hz, 18 dB/octave
Open Circuit Sensitivity -39 dB (11.2 mV) re 1V at 1 Pa
Maximum Input Sound Level 139 dB SPL, 1 kHz at 1% T.H.D.
