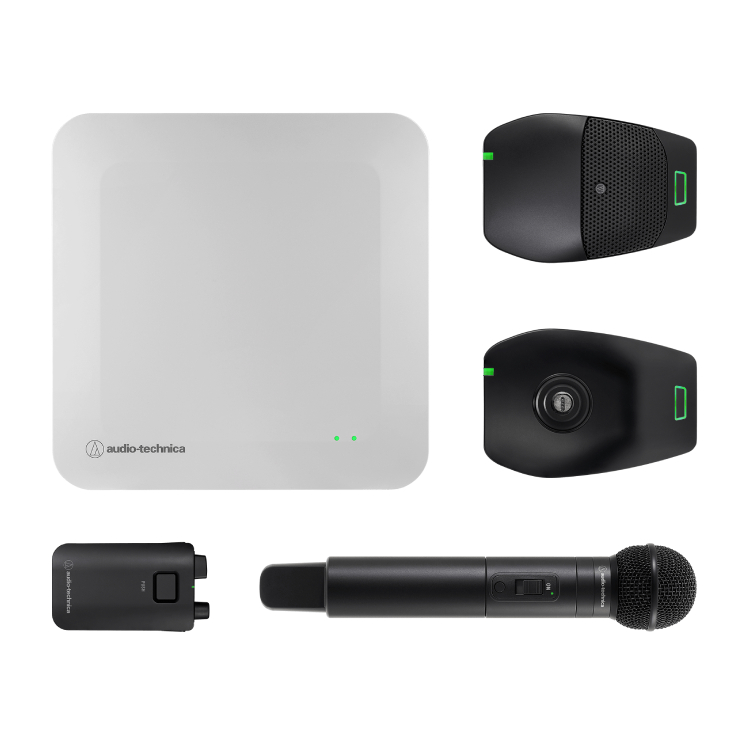

Engineered Sound® Wireless

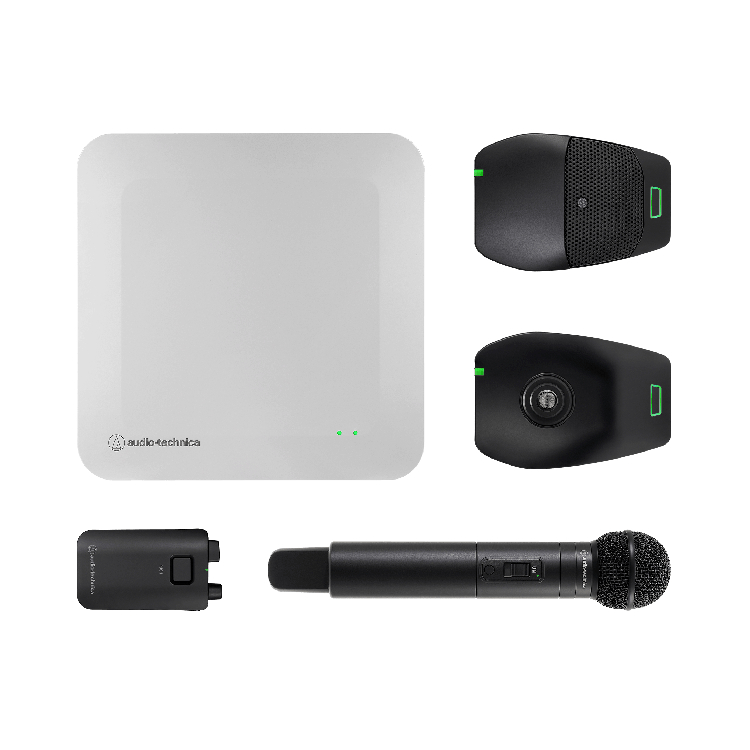

The Engineered Sound Wireless System is available in two configurations:

ESW-R4180DAN – Dante™-enabled

ESW-R4180LK – A-T LINK enabled

The demand for wireless microphones has grown as a result of the increasing prevalence of videoconferencing and web conferencing. Audio-Technica’s Engineered Sound Wireless System is a DECT wireless system that offers simple, smart, and scalable high-quality audio. This system overcomes many challenges of conventional wireless microphones, such as frequency coordination and the limited number of simultaneous microphones.

Operation is incredibly easy for end users, with microphones ready to use by simply removing them from the charging station. At full charge, the batteries offer all-day operation. Installation is also made easy using PoE to power the receiver(s) and Dante audio output capabilities. System integrators are able to configure detailed settings to meet a wide variety of end-user needs. Wiring is as simple as connecting a single Cat 5e cable to a PoE network switch.

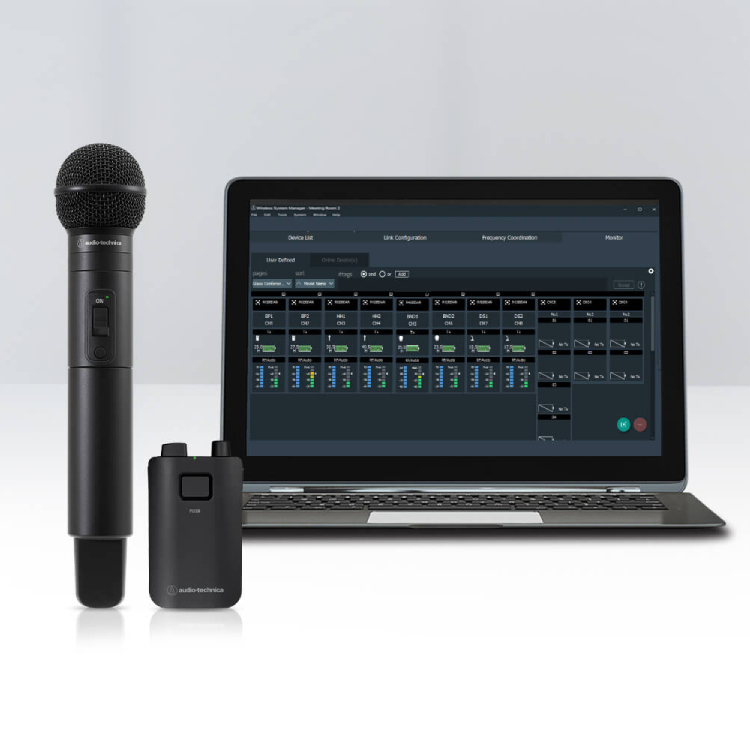

Seamless setup and management is controlled via Audio-Technica’s Wireless Manager software, which is capable of managing multiple wireless systems, including UHF wireless systems, from a single screen. In addition, AES256 encryption comes standard, providing superior security and reliable operation.

Overview Image

Overcoming Challenges of Conventional Wireless Systems

Simple, Smart, Scalable

Operation is incredibly easy with microphones ready to use by removing them from the charging station. Installation is also made easy using PoE to power the receiver(s) and Dante audio output capabilities. Engineered Sound wireless is scalable up to 192 channels with wiring as simple as connecting a single Cat 5e cable per receiver to a PoE network switch.

Scalable Up to 192 Simultaneous Usable Channels

All-Day Operation On a Full Charge

Automatic DECT-Based Frequency Management

Dante Audio Output

Up to 192 Simultaneous Channels

High Channel Count

Select from standard mode (Up to 96 channels) to minimize latency, and HD mode (Up to 192 channels) to maximize the number of channels.

Overview Image

Rapid Recharge in as Little as 2 Hours

Internal batteries offer all-day operation on full charge. Boundary: Up to 22 hours Desk Stand: Up to 17 hours Body-Pack: Up to 25 hours Handheld: Up to 35 hours

Internal batteries offer all-day operation on full charge. Boundary: Up to 22 hours Desk Stand: Up to 17 hours Body-Pack: Up to 25 hours Handheld: Up to 35 hours

Overview Image

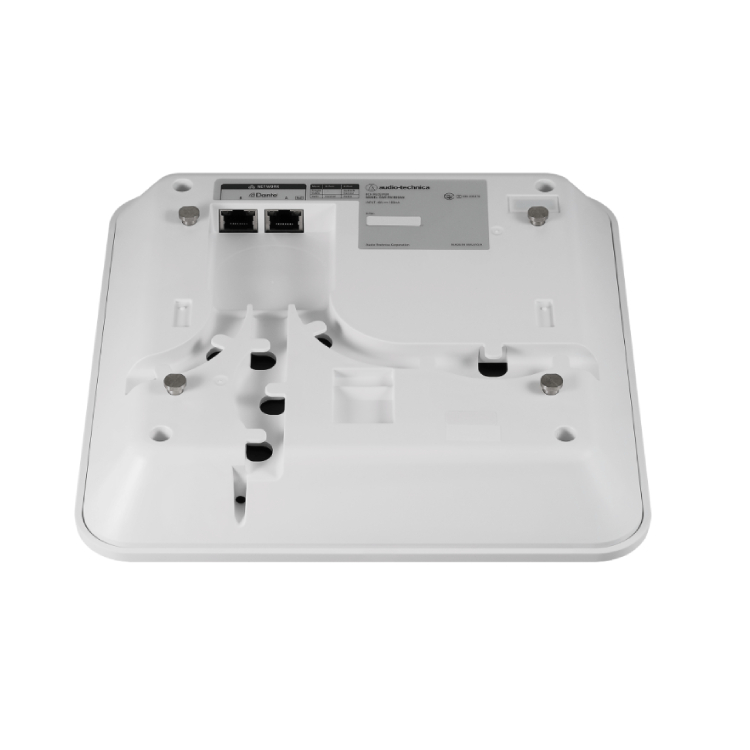

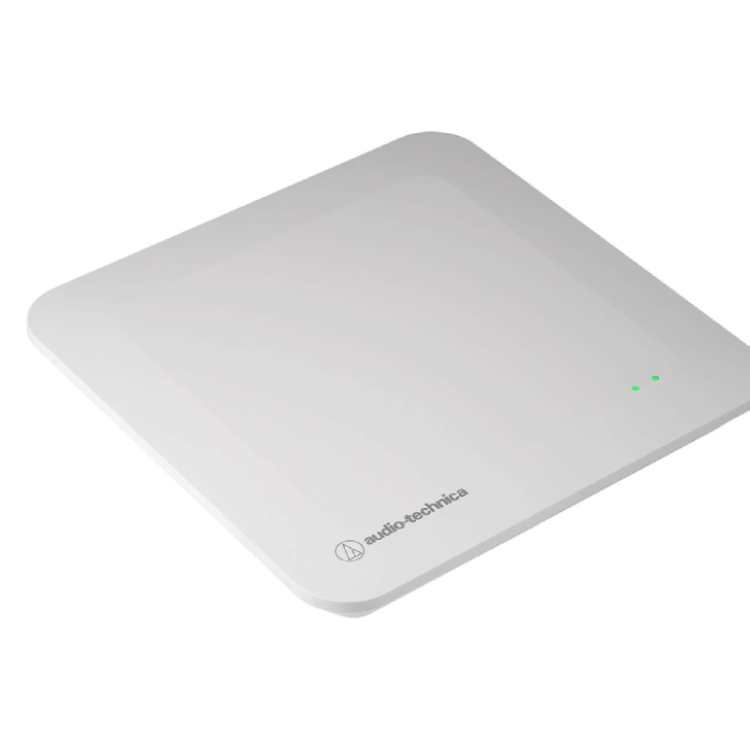

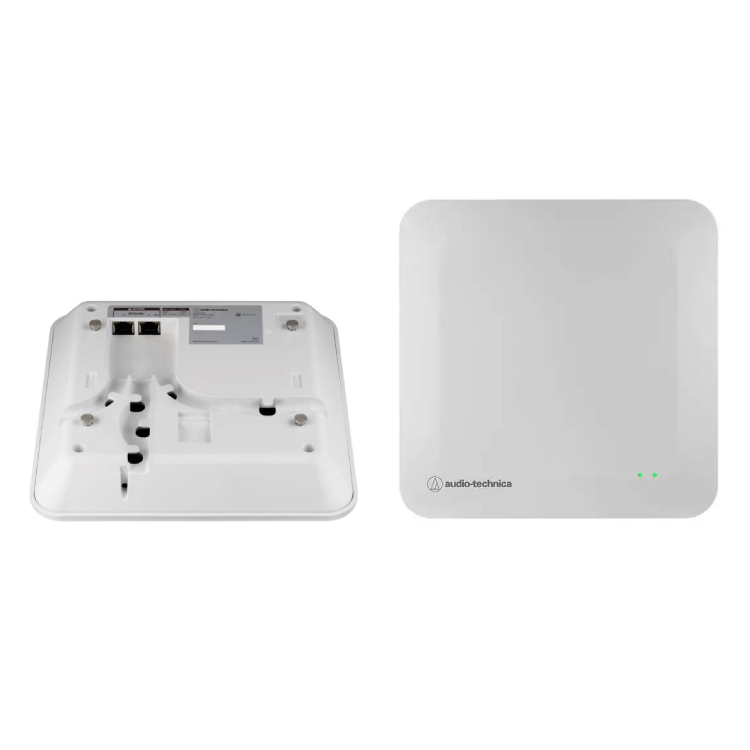

ESW-R4180DAN

8-Channel Receiver

  • Onboard LEDs verify link status at a glance
  • Dual network ports allow Dante and IP control separation
  • Supports mixed output for situations with limited input channels
  • Monitor transmitter status, audio level, remaining battery time, and other information in A-T Wireless Manager

Overview Image

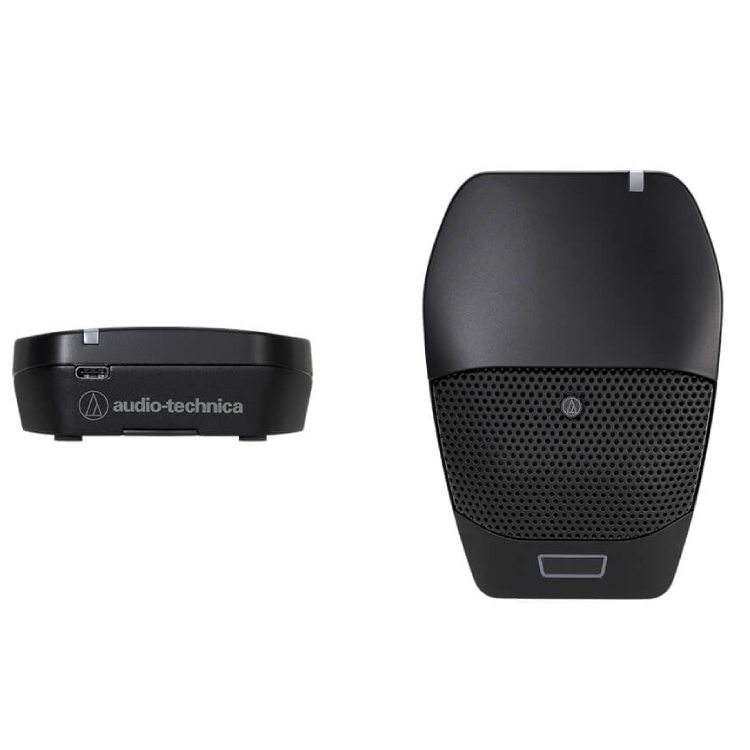

ESW-T4106

Boundary Microphone Transmitter

  • Selectable omnidirectional and cardioid polar patterns

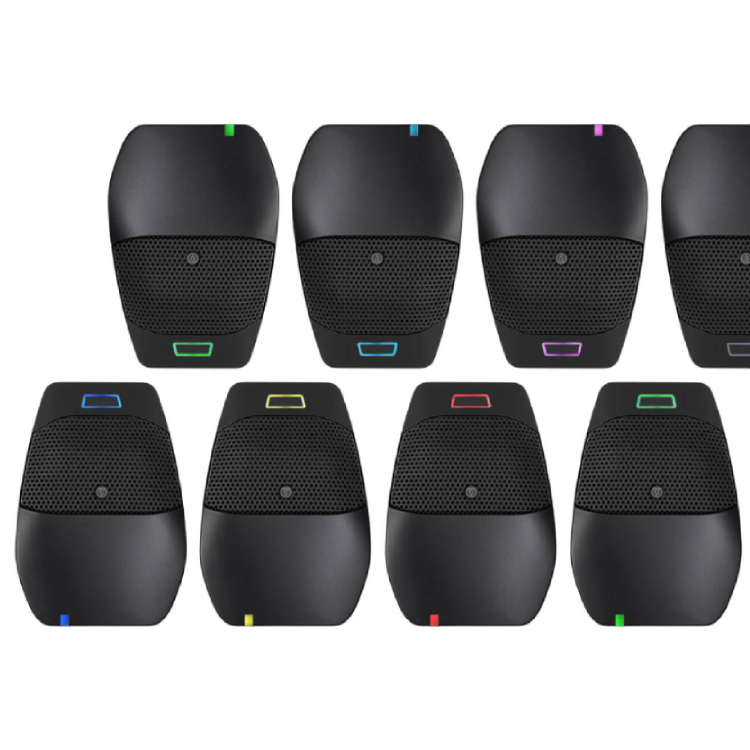

  • 2-state RGB LED mute status indicator (7 selectable colors)
  • Selectable mute operation (toggle, touch-to-talk, or touch-to-mute)
  • Transmitter can be set to start either muted or unmuted
  • Transmitter can be used while charging via USB-C type connection

Overview Image

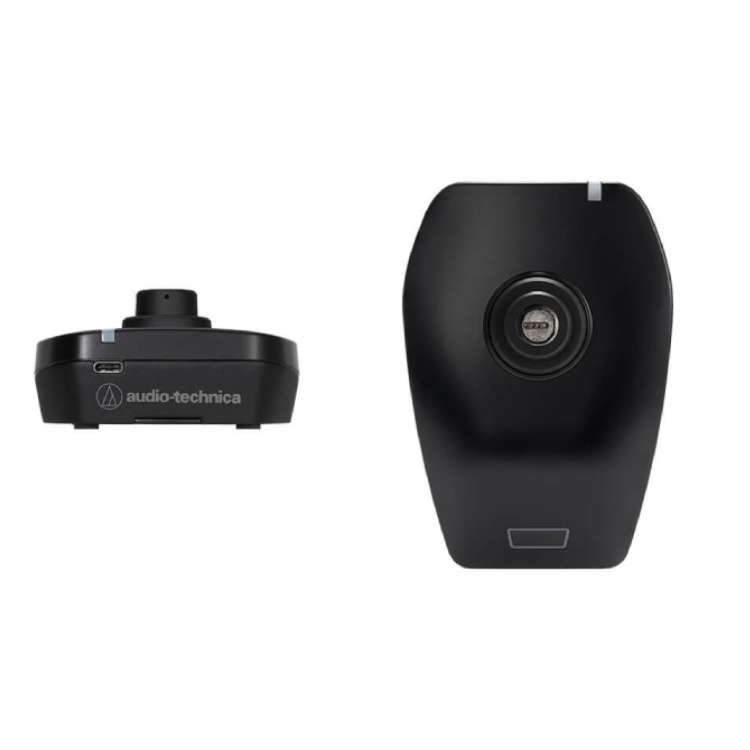

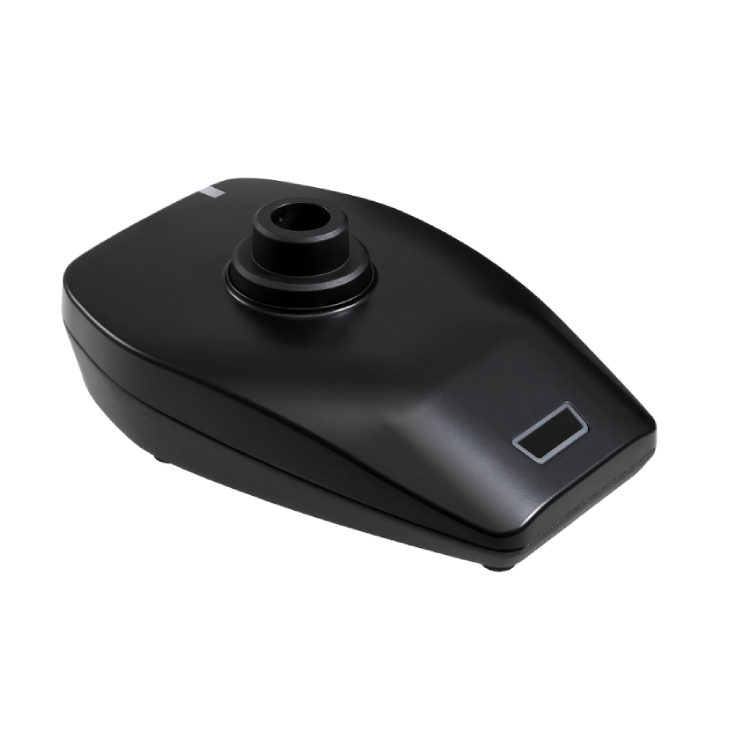

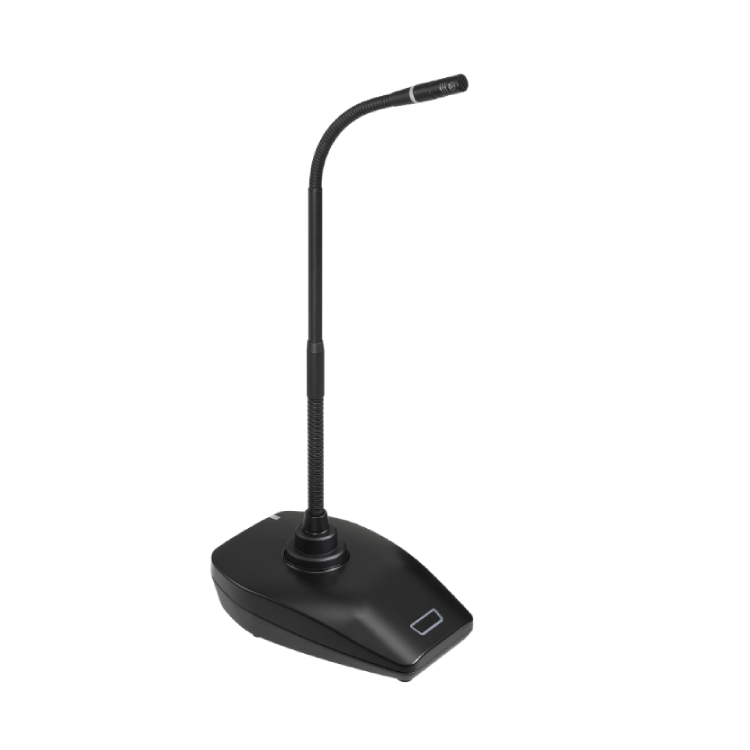

ESW-T4107

Desk Stand Transmitter

  • 2-state RGB LED mute status indicator (7 selectable colors)
  • Compatible with ES925 Series gooseneck microphones
  • Transmitter can be used while charging via USB-C type connection
  • Selectable mute operation (toggle, touch-to-talk, or touch-to-mute)
  • Transmitter can be set to start either muted or unmuted

Overview Image

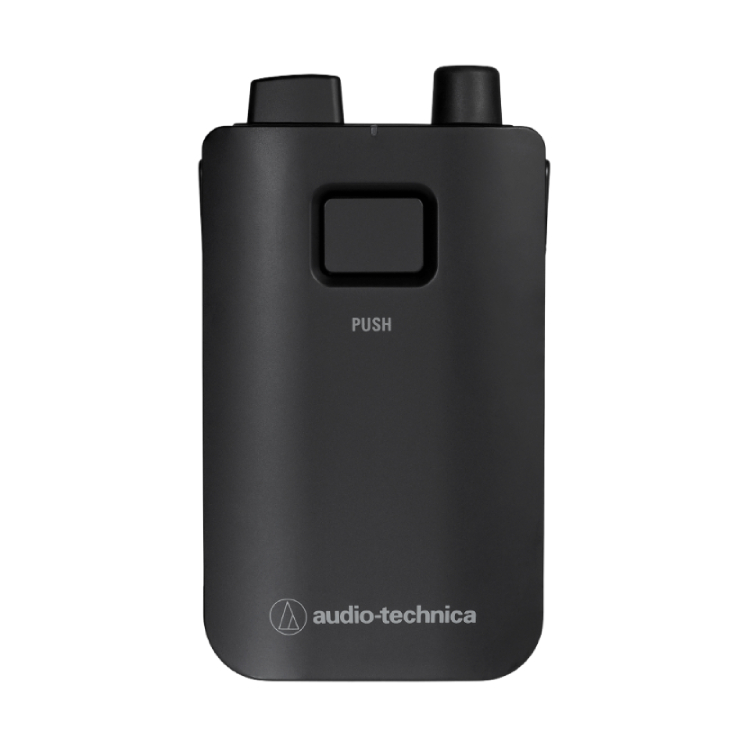

ESW-T4101

Body-Pack Transmitter

  • Built-in high-quality microphone
  • Transmitter neck strap included
  • Lightweight design
  • Compact, sweat-resistant cH-type connectors for use with a variety of Audio-Technica microphones

Overview Image

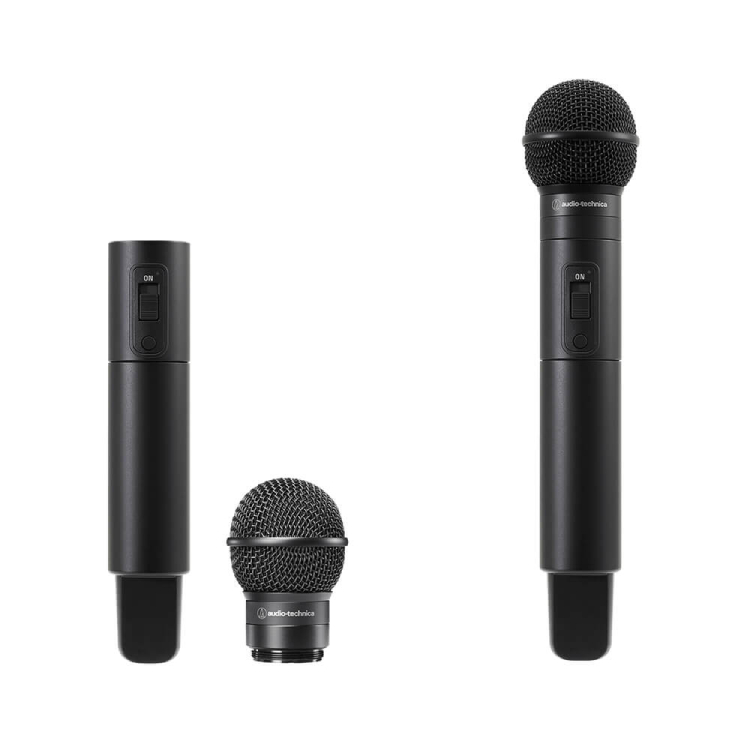

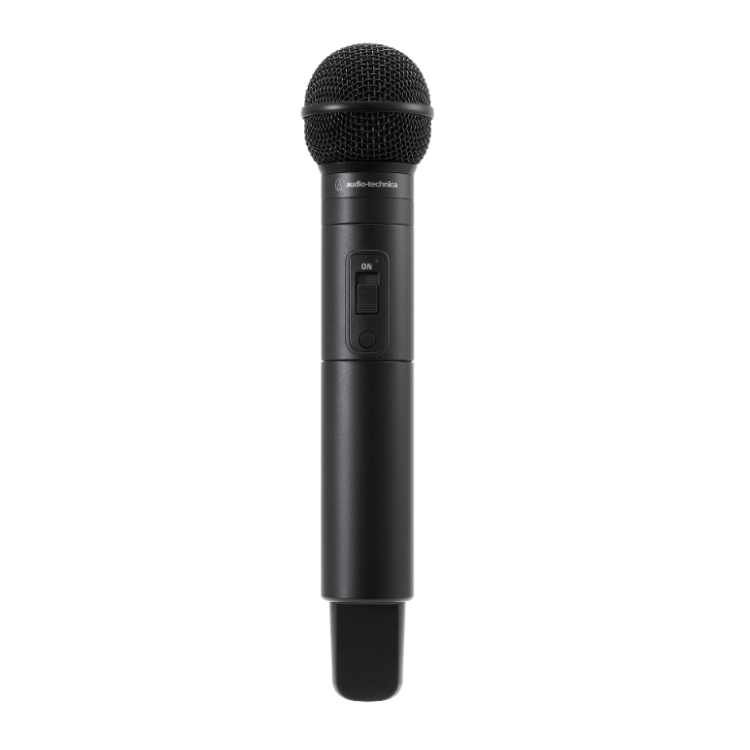

ESW-T4102/C510

Handheld Transmitter

  • Comes equipped with cardioid dynamic capsule (ATW-C510)
  • Slide-to-mute switch
  • Compatible with a wide array of interchangeable Audio-Technica wireless microphone capsules
  • Robust metal design

Overview Image

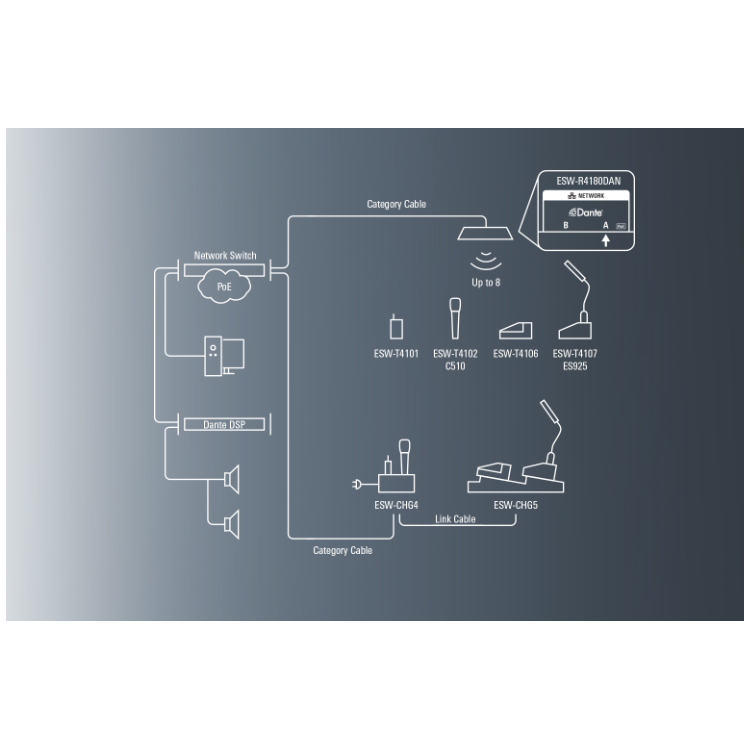

Up to 8-Channels per Receiver

Small to Medium Conference Room Use

Any combination of up to 8 handheld, body-pack, desk stand, or boundary transmitters may be used simultaneously with a single ESW-R4180DAN receiver. Simply connect a receiver via Cat 5e cable to a PoE network switch. To further simplify cable management, 8 bays of transmitter charging may be powered off of one AC adapter and connected via one Cat 5e cable for monitoring.

Overview Image

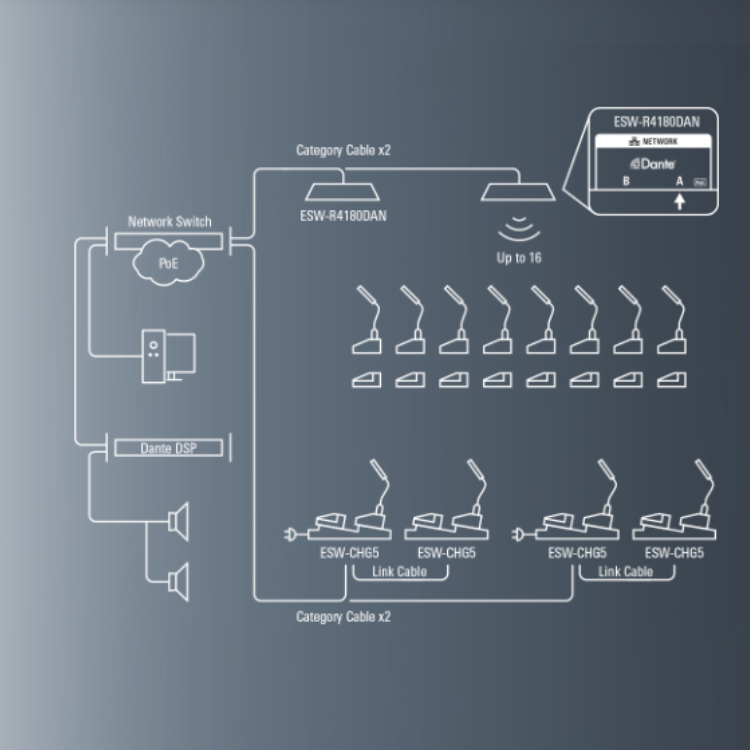

Up to 192 Channels of ES Wireless

Large Conference Room Use

Any combination of up to 8 handheld, body-pack, desk stand, or boundary transmitters may be used simultaneously with each ESW-R4180DAN receiver. Up to 12 receivers can be used providing a maximum count of 192 simultaneous channels (when utilizing HD mode). Simply connect each receiver via Cat 5e cable to a PoE network switch. To further simplify cable management, 8 bays of transmitter charging may be powered off of one AC adapter and connected via one Cat 5e cable for monitoring.

Overview Image

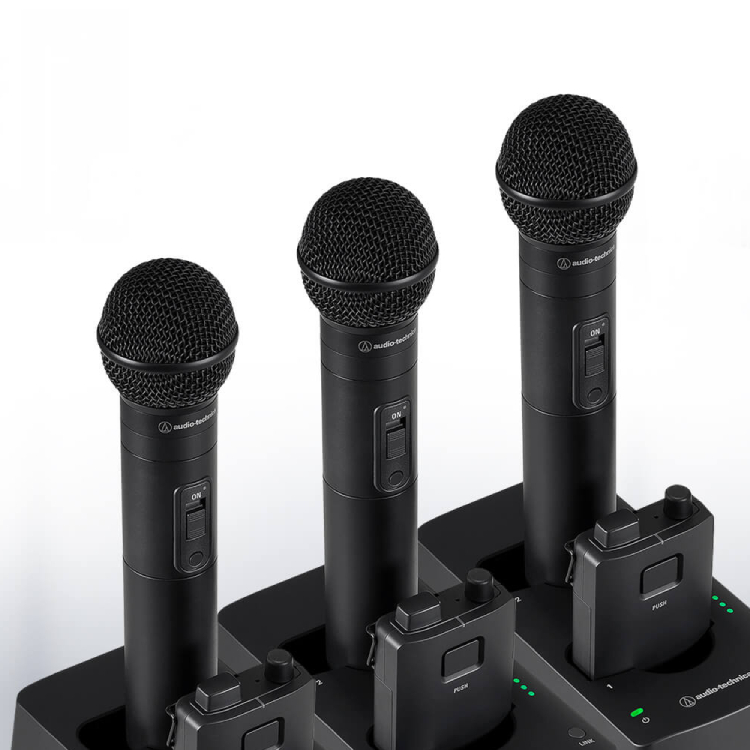

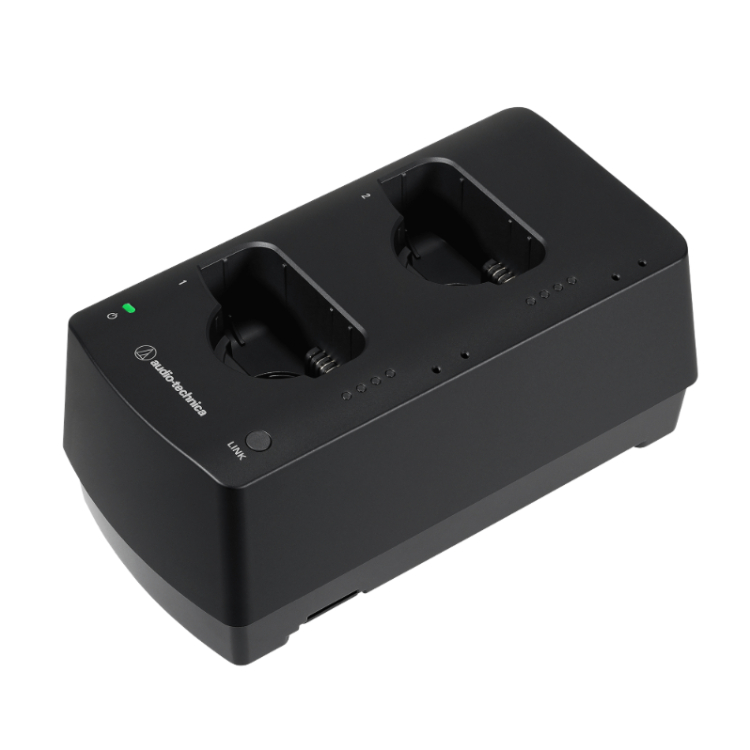

ESW-CHG4

Two-Bay Charging Station

  • Rapid recharge support (approx. 2 hours for ESW-T4101; approx. 3 hours for ESW-T4102)
  • Link up to 4 charging stations with just one AC adapter and Cat 5e cable
  • Charging status and battery level appear in A-T Wireless Manager software
  • Microphone hanger included for convenient lavalier microphone storage
  • Ability to update firmware remotely on all docked transmitters

Overview Image

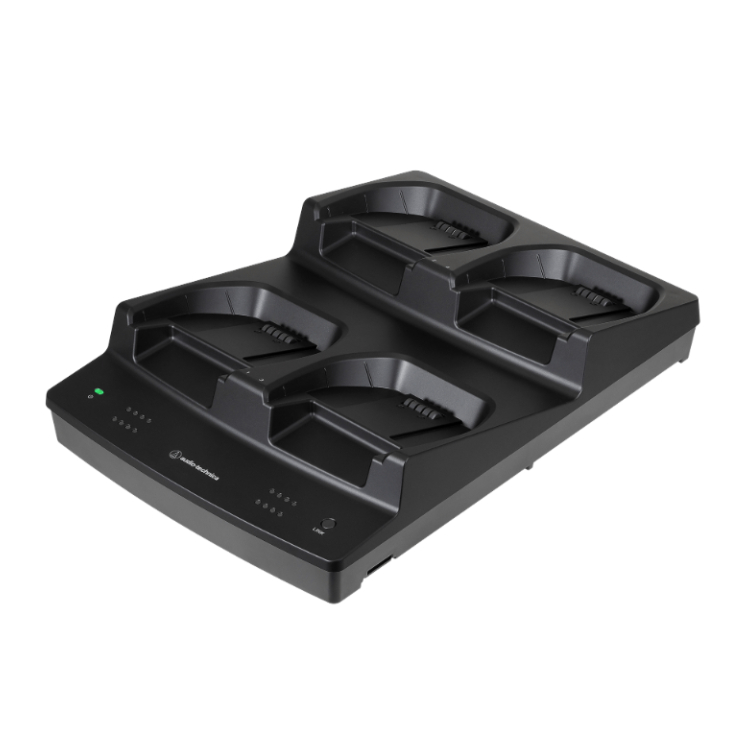

ESW-CHG5

Four-Bay Desk Stand and Boundary Charging Station

  • Rapid recharge in as little as 2 hours
  • Link up to 2 charging stations with just one AC adapter and Cat 5e cable
  • Charging status and battery level appear in A-T Wireless Manager software
  • Ability to update firmware remotely on all docked transmitters

Overview Image

Secure Communications

Security Built-In

Stay confident that your communications will remain safe and secure with AES256 encryption support.

Overview Image

  • Automatic DECT-based frequency management
  • Up to 96 simultaneous usable channels Simple setup with Cat 5e cable and 8-channel Dante audio output
  • Standard mode (96 channels) minimizes latency, and HD mode (192 channels) maximizes the number of channels
  • Selectable RF power output to optimize coverage area
  • Compatible with Audio-Technica’s Wireless Manager software for centralized management of system settings and operations
  • Presets allow transmitters to be customized for multiple applications
  • Roaming function allows transmitters to connect to multiple receivers within preconfigured rooms/areas
  • Long-lasting internal lithium-ion batteries for all-day transmitter use
  • Sound quality optimized for intelligible, crystal-clear audio
  • Adjustable high-pass, transmitter gain, and volume for each receiver channel
  • AES256 encryption for superior security
  • Compatible with Syslog protocol
  • Ability to configure, monitor, and save device settings as projects in Wireless Manager
  • DECT RF scan identifies number of available DECT wireless channels via A-T’s Wireless Manager software
