ATUC-IRDU

IR Discussion Unit

Enquire Now
Category:

Reviews

There are no reviews yet.

Be the first to review “ATUC-IRDU”

Your email address will not be published. Required fields are marked *

Overview

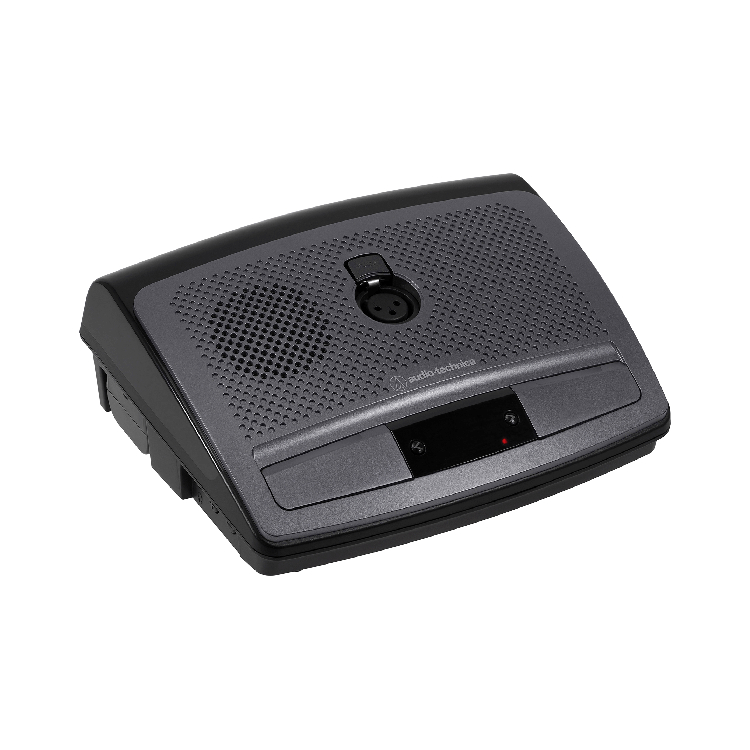

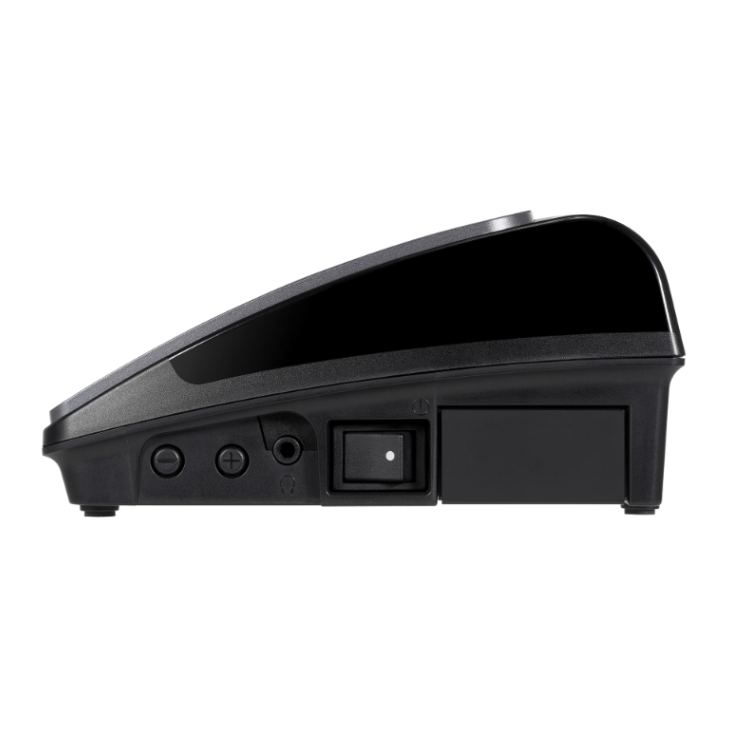

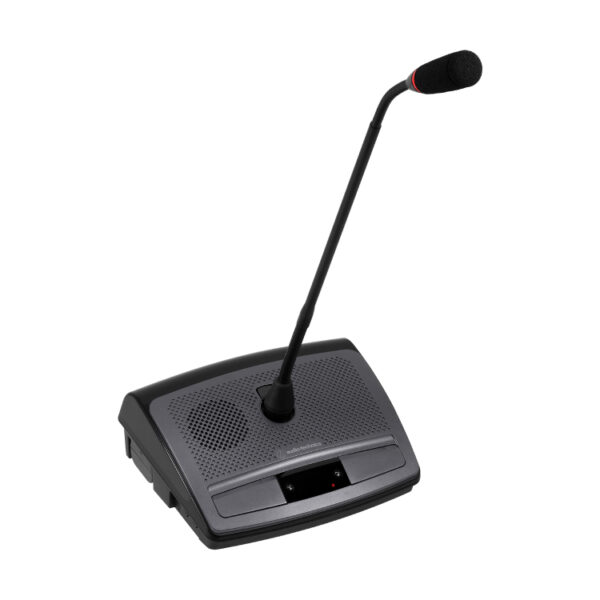

ATUC-IRDU IR Discussion Unit

Infrared discussion unit with high-quality audio, Individual automated gain control (AGC), mic gain and mic EQ and compatibility with standard XLR3 pin gooseneck

Whatever your conferencing or discussion needs, the ATUC-IR is designed to offer reliable, clear and intelligible communication to significantly increase meeting efficiency and effectiveness.

Voice is the quickest and most efficient tool for exchanging ideas – whether in meeting rooms, councils, classrooms or through videoconference, speech is the most direct way of communication and understanding.

In the digital era, the control of information is paramount. With an infrared conference system your wireless signal will not leave the room; it is impossible to capture from another building, for example. Compared to a UHF system (radio waves), which behaves in the same way a radio station transmitting over a broad area, the infrared system excels at protecting your information, since no leakage is possible.

Via IR transmission, the ATUC-IRDU connects easily with the ATUC-IRCU (ATUC-IRCUDAN).

  • Connect up to 200 discussion units to one hybrid control unit
  • Equipped with two multifunction buttons which can be shared with 2 people, or used for the chairman
  • Use of one or two batteries for over 13 hours of operation
  • High quality speaker for enhanced intelligibility
  • Clear LED display for channel selection
  • Individual Automated Gain Control (AGC), Mic gain and Mic EQ
  • Multicolour LED bar on the DU (rear side)
  • Multicolour LED on each speak button
  • Compatibility with standard XLR3 pin gooseneck
  • Supports ATUC-MIC and their LED rings

Overall System

Operating Frequencies Infrared
Frequency Response +1.0, -2.0dB, 200Hz – 5kHz (+4dBu output at 1kHz)
Operating Range Max. 6m
Total Harmonic Distortion Less than 1%, 1kHz unity
Operating Temperature Range 0 – 40°C
