Overview

AT831

This clip-on lavalier mic provides crisp, full-sounding voice pickup. It also excels as an instrument mic, especially for pickup of acoustic guitar. The wired configuration (AT831R) includes the AT8444 guitar mount. The mic is ideal for higher SPL applications, and offers excellent gain before feedback and suppression of background noise. Includes windscreen and clothing clip.

Available configurations:

AT831R: 13.1′ (4.0 m) permanently attached cable terminated with TA3F connector; AT8538 phantom-only power module with 80 Hz high-pass filter.

AT831b: 6′ (1.8 m) permanently attached cable terminated with TA3F connector; AT8531 power module (with 80 Hz high-pass filter) for battery or phantom power.

AT831c: 10′ (3 m) permanently attached cable (unterminated); no power module.

AT831cH: 55″ (1.4 m) permanently attached cable terminated with a screw-down 4-pin connector for use with Audio-Technica cH-style body-pack wireless transmitters; no power module.

AT831cW: 55″ (1.4 m) permanently attached cable terminated with cW-style locking 4-pin connector for use with Audio-Technica cW-style body-pack wireless transmitters; no power module.

This clip-on lavalier mic AT831R provides crisp, full-sounding voice pickup and excels as an instrument mic, especially for pickup of acoustic guitar with included AT8444 Instrument Microphone Adapter. It offers excellent gain before feedback and suppression of background noise. An integral 80 Hz high-pass filter provides easy switching from a flat frequency response to a low-end roll-off. It operates on phantom power only.

  • Clip-on lavalier mic also excels in acoustic guitar applications
  • Provides crisp, full-sounding voice and instrument pickup
  • Operates on phantom power only
  • 6′ (1.8 m) cable permanently attached to mic, TA3F connector at power module

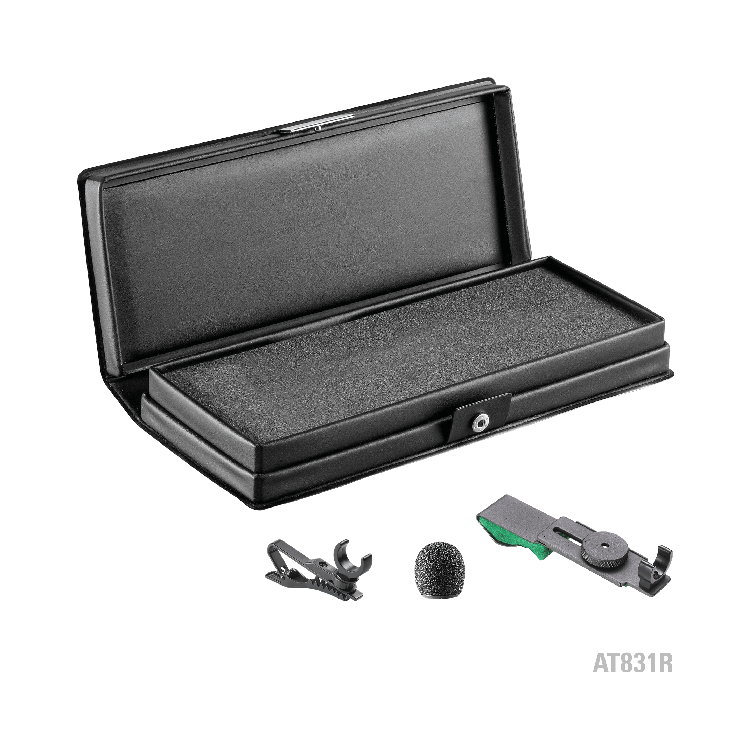

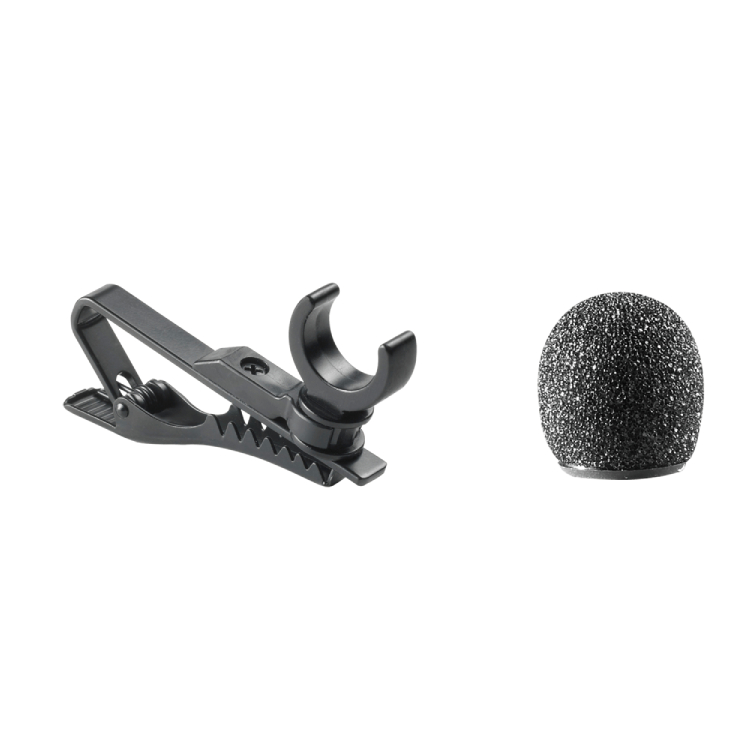

  • Included AT8417 clothing clip; AT8444 Instrument Microphone Adapter; AT8538 remote power module; AT8116 windscreen; protective carrying case
  • Also available as: AT831b – with battery or power module AT831c – less power module; includes clothing clip and windscreen only; 10′ (3 m) cable, unterminated AT831cW – less power module; includes clothing clip and windscreen only; 55″ (1.4 m) cable terminated with locking 4-pin connector for A-T UniPak® wireless systems

Microphones

Element Condenser
Polar Pattern Cardioid
Frequency Response 40 – 16,000 Hz
Low Frequency Roll Off 80 Hz, 18 dB/octave (wired only)
Open Circuit Sensitivity -42 dB (7.9 mV) re 1V at 1 Pa
