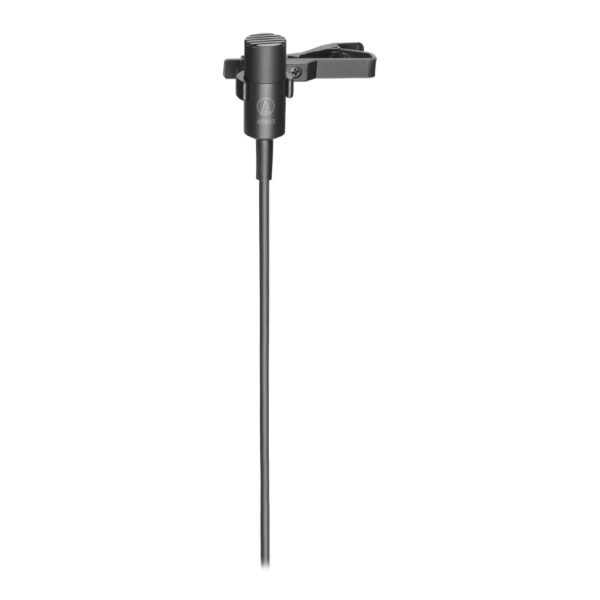

AT803

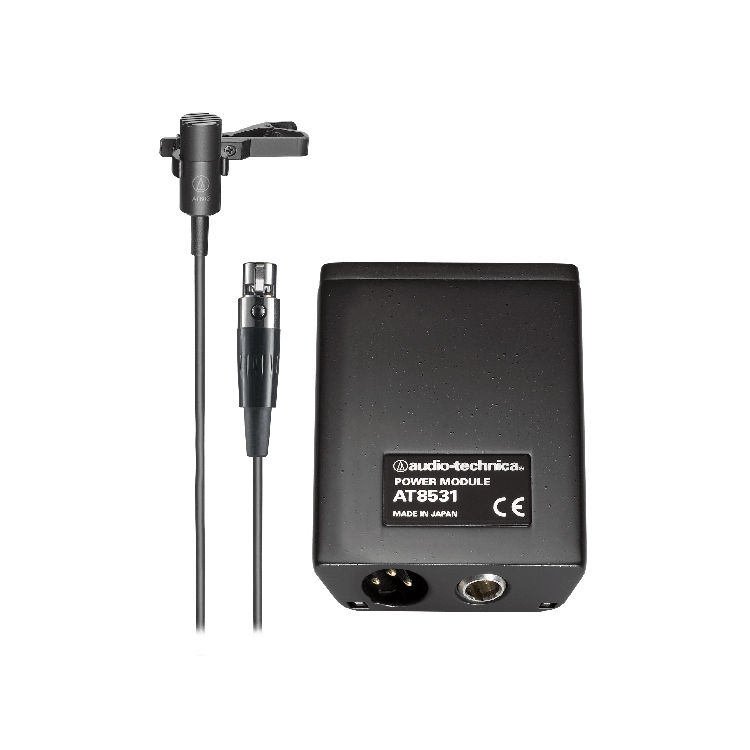

Miniature omnidirectional condenser microphone with power module

Enquire Now

Reviews

There are no reviews yet.

Be the first to review “AT803”

Your email address will not be published. Required fields are marked *

Overview

AT803

Miniature omnidirectional condenser microphone with power module

The AT803 provides excellent yet unobtrusive sound pickup for lecturers and stage/TV performers. Designed for clip-on lavalier and musical instrument use, it features an integral 80 Hz high-pass filter that provides easy switching from a flat frequency response to a low-end roll-off. The microphone operates on battery or phantom power.

  • High intelligibility for lecturers and stage/TV performers
  • Provides excellent yet unobtrusive sound pickup
  • UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
  • Operates on battery or phantom power
  • 6′ (1.8 m) cable permanently attached to mic, TA3F connector at power module

Microphones

Element Fixed-charge back plate, permanently polarized condenser
Polar Pattern Omnidirectional
Frequency Response 30 – 20,000 Hz
Low Frequency Roll Off 80 Hz, 18 dB/octave
Open Circuit Sensitivity Phantom: -44 dB (6.3 mV) re 1V at 1 Pa
Battery: -46 dB (5.0 mV) re 1V at 1 Pa
