| Receiver & Transmitter Specifications | ATW-R1440 ATW-RC14 | Receiver unit external connection port | RJ45 | | NETWORK Port | RJ45: RJ45: RJ45 Fast Ethernet | | LINK IN/OUT port | RJ12 | | Output Level | LINE max: +22dBu (+20dBV)
LINE Unity: -20dBu (-22dBV)
MIC max: -12dBu (-10dBV)

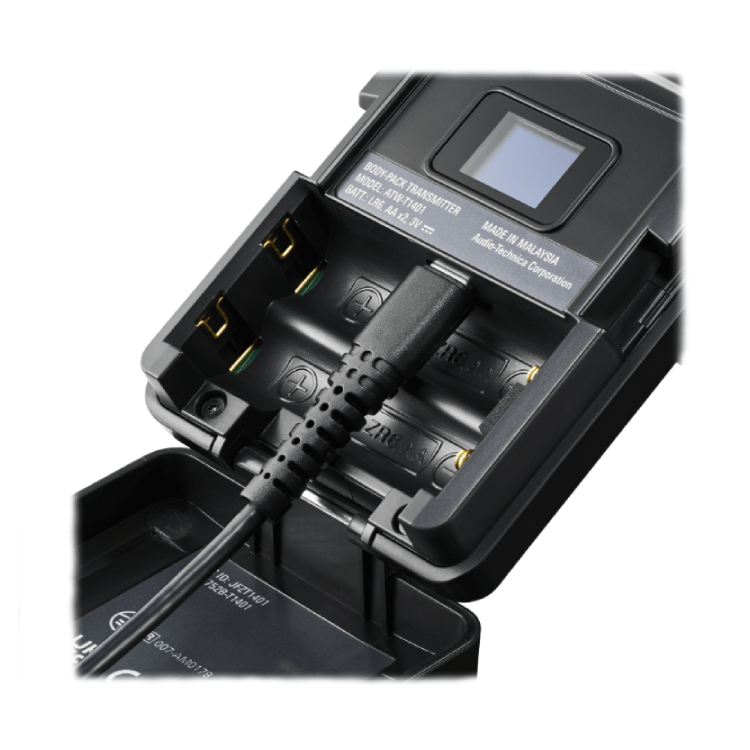

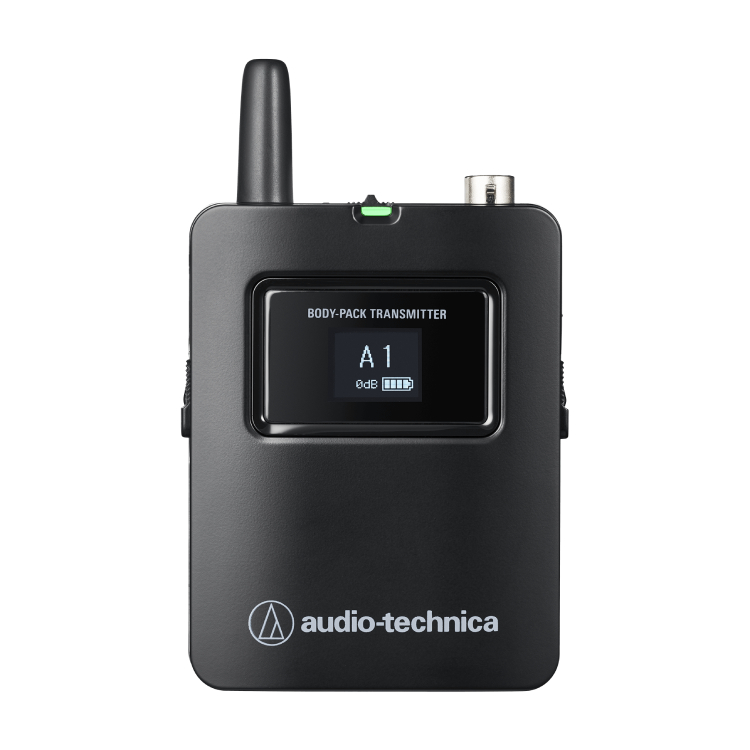

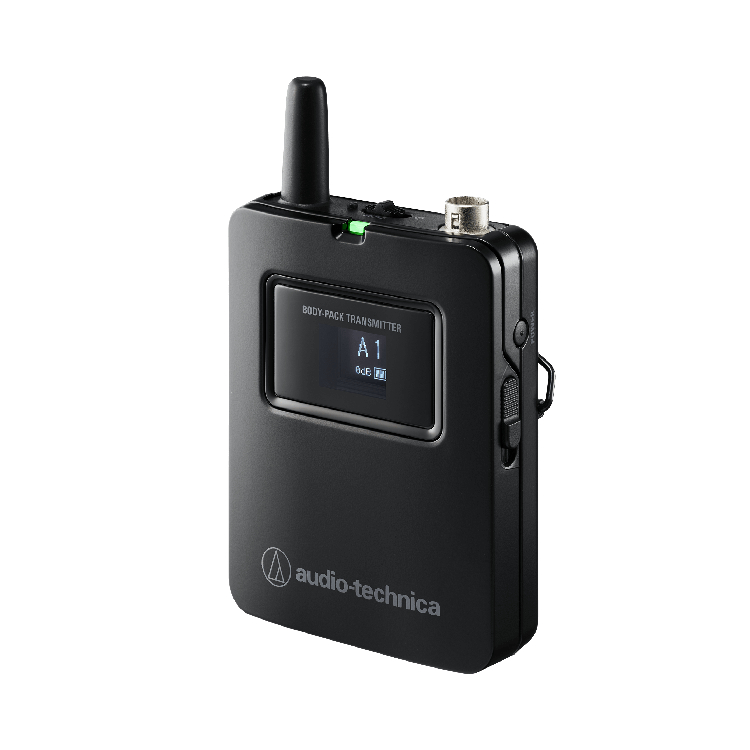

MIC Unity: -50dBu (-52dBV) | | Power Consumption | 3.7W | | Power Supply | DC12V 0.5A (AC adapter) | | Operating temperature | 0ºC to +40ºC | | Dimensions | 209.8mm x 165.6mm x 42.5mm (W x D x H) | | Weight | 740g | | Included Accessory | Blade tip for AC adapter and AC adapter, Rack mount adapter (short), rack mount adapter (long), Fixing screws x 5, connecting cable (30cm), rubber feet x 4 | ATW-RU14 | Modulation mode | GFSK | | RF output | 10mW EIRP | | RF sensitivity | -90dBm, typical | | Whip antenna | 1/2 Dipole Antenna, Diversity | | External connection port | RJ45 | | Power Supply | DC12V (RC14) | | Operating temperature | 0ºC to +40ºC | | Dimensions | 86.0mm x 70.2mm x 18.7mm (W x D x H) | | Weight | 77g | | Included Accessory | Unit holder, holder cover, wood screws x 2, antenna x 4 | ATW-T1401 BODY-PACK TRANSMITTER | Modulation mode | GFSK | | RF output | 10mW EIRP | | RF sensitivity | -90dBm, typical | | Whip antenna | True diversity | | Input Connection | Four pin locking connector
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +10V | | Battery | DC3V (2 AA batteries) | | Battery Life | AA alkaline batteries: Approx. 15 hours
AA NiMH batteries: Approx. 14 hours and 30 minutes
AA lithium batteries: Approx. 29 hours
This varies depending on usage conditions. | | Operating Temperature | 5ºC to +40ºC | | Dimensions | 63.7mm x 22.7mm x 107.4mm (W x D x H) | | Weight | 80g (without batteries) | ATW-T1402 HANDHELD TRANSMITTER | Modulation mode | GFSK | | RF output | 10mW EIRP | | RF sensitivity | -90dBm, typical | | Whip antenna | True diversity | | Microphone type | Dynamic type | | Microphone Directional Characteristics | Hypercardioid | | Battery | DC3V (2 AA batteries) | | Battery Life | AA alkaline batteries: Approx. 18 hours
AA NiMH batteries: Approx. 16 hours and 30 minutes
AA lithium batteries: Approx. 35 hours
This varies depending on usage conditions. | | Operating Temperature | 5ºC to +40ºC | | Dimensions | 265.0mm long x 53.7mm diameter | | Weight | 300g | | Included Accessory | Microphone holder AT8456a, Conversion screw adapter (3/8″ – 5/8″) | ATW-T1406 BOUNDARY MICROPHONE TRANSMITTER | Modulation mode | GFSK | | RF output | 10mW EIRP | | RF sensitivity | -90dBm, typical | | Whip antenna | True diversity | | Maximum input sound pressure level | 139dB SPL | | Microphone type | Capacitor type | | Microphone Directional Characteristics | Cardioid | | Built-in battery | 3.7V lithium-ion battery (5.5Wh, 1460mAh) | | Battery Life | Approx. 12 hours
This varies depending on usage conditions. | | Charging Time | Approx. 3 hours and 10 minutes
This varies depending on usage conditions. | | USB Charging port | USB Type-C (USB 2.0) | | Operating Temperature | 5ºC to +40ºC | | Dimensions | 90.5mm x 129.4mm x 31.9mm (W x D x H) | | Weight (with battery) | 510g (including battery) | | Included Accessory | USB power adapter, blade tip for USB power adapter, USB cable (1.5 m) | ATW-T1407 DESK STAND TRANSMITTER | Modulation mode | GFSK | | RF output | 10mW EIRP | | RF sensitivity | -90dBm, typical | | Whip antenna | True diversity | | Microphone | Gooseneck microphone support | | Phantom power supply | DC24V | | Built-in battery | 3.7V lithium-ion battery (5.5Wh, 1460mAh) | | Battery Life | When using gooseneck microphone without LED: Approx. 12 hours
When using gooseneck microphone with LED: Approx. 8 hours
This varies depending on usage conditions. | | Charging Time | Approx. 3 hours and 10 minutes
This varies depending on usage conditions. | | USB Charging port | USB Type-C (USB 2.0) | | Operating Temperature | 5ºC to +40ºC | | Dimensions | 90.5mm x 129.4mm x 47.6mm (W x D x H) | | Weight (with battery) | 490g (including battery) | | Included Accessory | USB power adapter, blade tip for USB power adapter, USB cable (1.5 m) | |
