Audio TechnicaAudio TechnicaTwo-Bay Charging Station with Network Connection

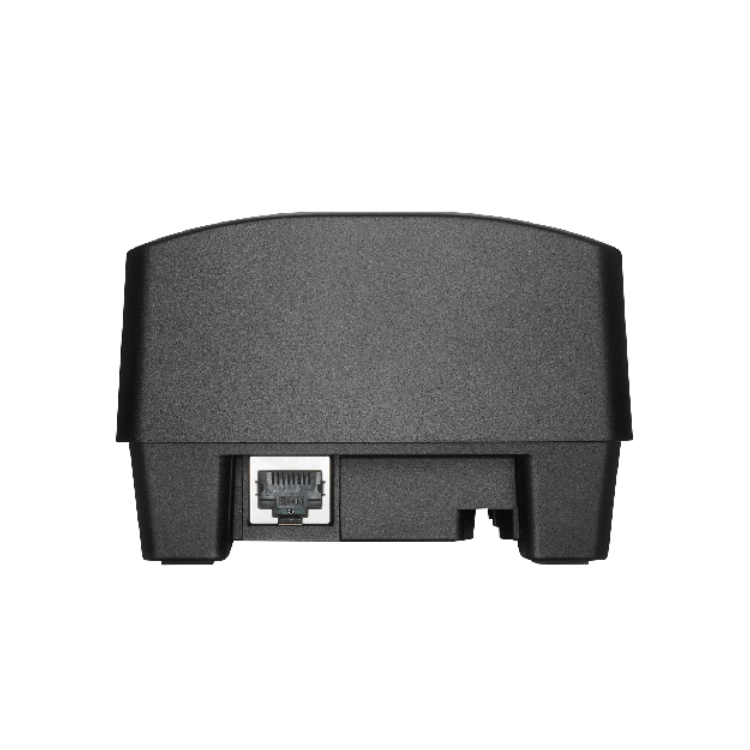

The ATW-CHG3N two-bay charging dock charges NiMH batteries that are installed in the transmitters. The dock automatically shuts off if alkaline or damaged batteries are detected in the transmitters. Up to five docks can be linked and powered by a single power supply. The ATW-CHG3N networked version of the charging dock allows users to monitor the charging status of all transmitters in the linked docks.
“One Power Supply feeds up to five charger”
Up to five docks can be connected to one power supply (AD-SA1230XA – available seperately) to charge up to ten transmitters (one AT8687 per link is required – available separately).
“Monitoring and controlling”
The ATW-CHG3N networked version of the charging dock allows users to monitor the charging status of all transmitters in the linked docks (one AT8687 per link is required – available separately). Only the first dock has to be a ATW-CHG3N, all linked docks (up to four) has to be ATW-CHG3.
“Protection against misuse”
The dock automatically shuts off if alkaline or damaged batteries are detected in the transmitters.
Overview
Two-Bay Charging Station
Two-Bay Charging Station with Network Connection
The ATW-CHG3N two-bay charging dock charges NiMH batteries that are installed in the transmitters. The dock automatically shuts off if alkaline or damaged batteries are detected in the transmitters. Up to five docks can be linked and powered by a single power supply. The ATW-CHG3N networked version of the charging dock allows users to monitor the charging status of all transmitters in the linked docks.
“One Power Supply feeds up to five charger”
Up to five docks can be connected to one power supply (AD-SA1230XA – available seperately) to charge up to ten transmitters (one AT8687 per link is required – available separately).
“Monitoring and controlling”
The ATW-CHG3N networked version of the charging dock allows users to monitor the charging status of all transmitters in the linked docks (one AT8687 per link is required – available separately). Only the first dock has to be a ATW-CHG3N, all linked docks (up to four) has to be ATW-CHG3.
“Protection against misuse”
The dock automatically shuts off if alkaline or damaged batteries are detected in the transmitters.
Charging Unit
| Power Supply | DC12V 3.0A |
| Power Consumption | 5.3W (when 2 transmitters are charging) 27.8W (CHG3NĂ—1) (CHG3Ă—4) (5 units are connected and 10 transmitters are charging) |
| Charging Time | Approx. 6.5 hours (1,900 mAh rechargeable battery)* |
| Weight | 410 g |
| Accessories | Separately available – AC adapter (AD-SA1230XA), ATW-CHG3 Link kit (AT8687) |
