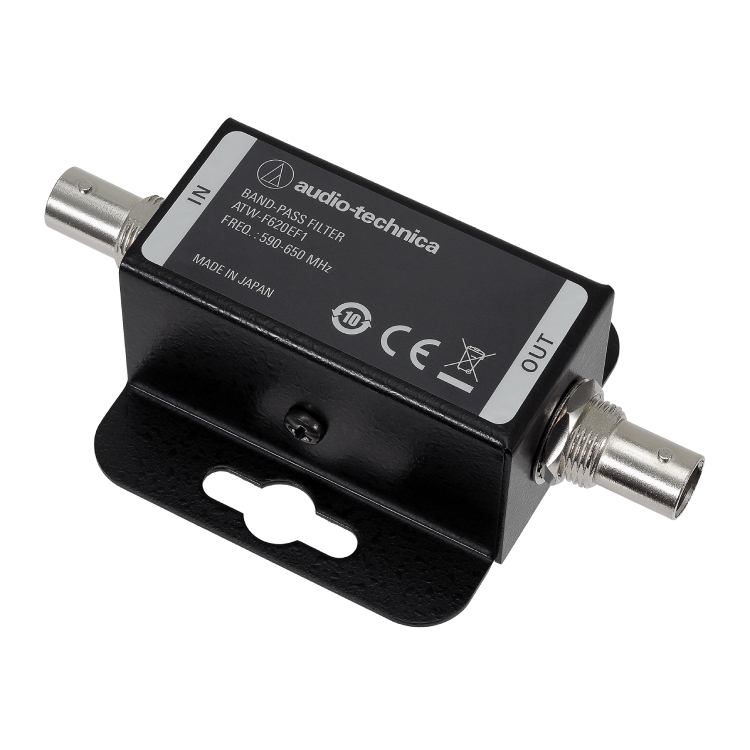

ATW-F620EF1

ATW-F620EF1

Band-Pass Filter Pair

These band-pass filters help eliminate “out-of-band” signals that can saturate the front end of wireless microphone receivers. They can also greatly improve dynamic range by reducing noise and third-party interference outside the operating range.

Each is fitted with industry-standard BNC-type connectors, requiring no power or user configuration and allowing easy connection to wireless microphone antennas to reduce noise and improve wireless system performance.

Note, the maximum pass-through current is 420 mA. To avoid malfunction, make sure the pass-through current is less then 420 mA.

Band-Pass Filter Pair

Enquire Now
Categories: ,

Related products

  • Passive operation
  • Industry-standard BNC-type connectors
  • Pair

ATW-F620EF1

Buy now Enquire Now

Overview

ATW-F620EF1

Band-Pass Filter Pair

These band-pass filters help eliminate “out-of-band” signals that can saturate the front end of wireless microphone receivers. They can also greatly improve dynamic range by reducing noise and third-party interference outside the operating range.

Each is fitted with industry-standard BNC-type connectors, requiring no power or user configuration and allowing easy connection to wireless microphone antennas to reduce noise and improve wireless system performance.

Note, the maximum pass-through current is 420 mA. To avoid malfunction, make sure the pass-through current is less then 420 mA.

  • Passive operation
  • Industry-standard BNC-type connectors
  • Pair

Antenna & Distribution

Frequency Range 470 to 530 MHz (ATW-F500DE2)
530 to 590 MHz (ATW-F560EE1)
590 to 650 MHz (ATW-F620EF1)
650 to 700 MHz (ATW-F675FG1)
Impedance 50 ohms
High Frequency Transmission Loss 4 dB (typical)
Current Pass Through 420 mA
Operating Temperature Range Allowable: -10 to +60 °C
Recommended: +15 to +35 °C
